Yungeln Electric Scooter Seat Instruction Manual

1. Кіріспе

Thank you for choosing the Yungeln Electric Scooter Seat. This adjustable, shock-absorbing seat is designed to enhance your riding comfort on Xiaomi M365 and M365 Pro electric scooters. This manual provides detailed instructions for assembly, installation, operation, and maintenance to ensure safe and optimal use of your new scooter seat.

2. Өнімнің ерекшеліктері

• Comfortable Riding: Features a high-elastic spring under the cushion for shock absorption, reducing bumps and providing a smoother ride on various terrains. The ergonomic cushion design conforms to body curves for enhanced comfort.
• Биіктігі реттелетін: The support frame can be adjusted from 17.71 inches (45 cm) to 25.6 inches (65 cm), accommodating various rider heights for maximum comfort.
• Күшті және берік: Constructed from aluminum alloy with a matte, anodic oxidation finish on the rod, ensuring longevity and resistance to wear and fading.
• Оңай орнату: Designed for straightforward installation and removal without the need for drilling or specialized tools, preventing damage to your scooter.
• Үйлесімділік: Specifically designed for Xiaomi M365 and M365 Pro electric scooters, offering a seamless and ergonomic upgrade.

Figure 1: Detailed display of the scooter seat's key features.

Figure 2: Illustration of the shock absorption mechanism.

3-сурет: Жақыннан view of the seat and shock absorber spring.

3. Пакет мазмұны

Орнату алдында пакетте барлық компоненттер бар екенін тексеріңіз:

• Орындық жастығы
• Base Mounting Bracket
• Support Bottom Tube
• Телескопиялық түтік
• Hexagon Socket Screwdriver
• Mounting Screws (if not received, please contact customer support)

Figure 4: All components included in the package with dimensions.

4. Орнату және орнату

Follow these steps to install the Yungeln Electric Scooter Seat onto your Xiaomi M365 or M365 Pro scooter. Ensure your scooter has a compatible mounting platform (curved deck).

1. Attach Seat to Telescopic Tube: Use a screwdriver to install the seat cushion onto the fixed buckle of the telescopic tube. Pay attention to the installation direction of the seat.
2. Assemble Support Post: Insert the telescopic tube (with the seat attached) into the support bottom tube and secure it with the provided buckle.
3. Базаға қосылу: Insert the assembled support bottom tube into the base mounting bracket.
4. Mount to Scooter: Place the assembled seat unit onto the scooter's footboard. Use the included screws and tools to securely fasten the base to the scooter. Ensure the base is firmly attached to prevent movement during use.

Figure 5: Visual guide for seat installation.

5. Пайдалану нұсқаулары

5.1 Орындық биіктігін реттеу

The scooter seat's height can be adjusted to suit your preference and comfort. The adjustable range is between 17.71 inches (45 cm) and 25.6 inches (65 cm).

1. Locate the adjusting clip or clamp on the support post.
2. Loosen the clip/clamp to allow the telescopic tube to move freely.
3. Adjust the seat to your desired height.
4. Securely tighten the clip/clamp to lock the seat in position. Ensure it is tight enough to prevent the seat from slipping during use.

Figure 6: Guide to adjusting seat height.

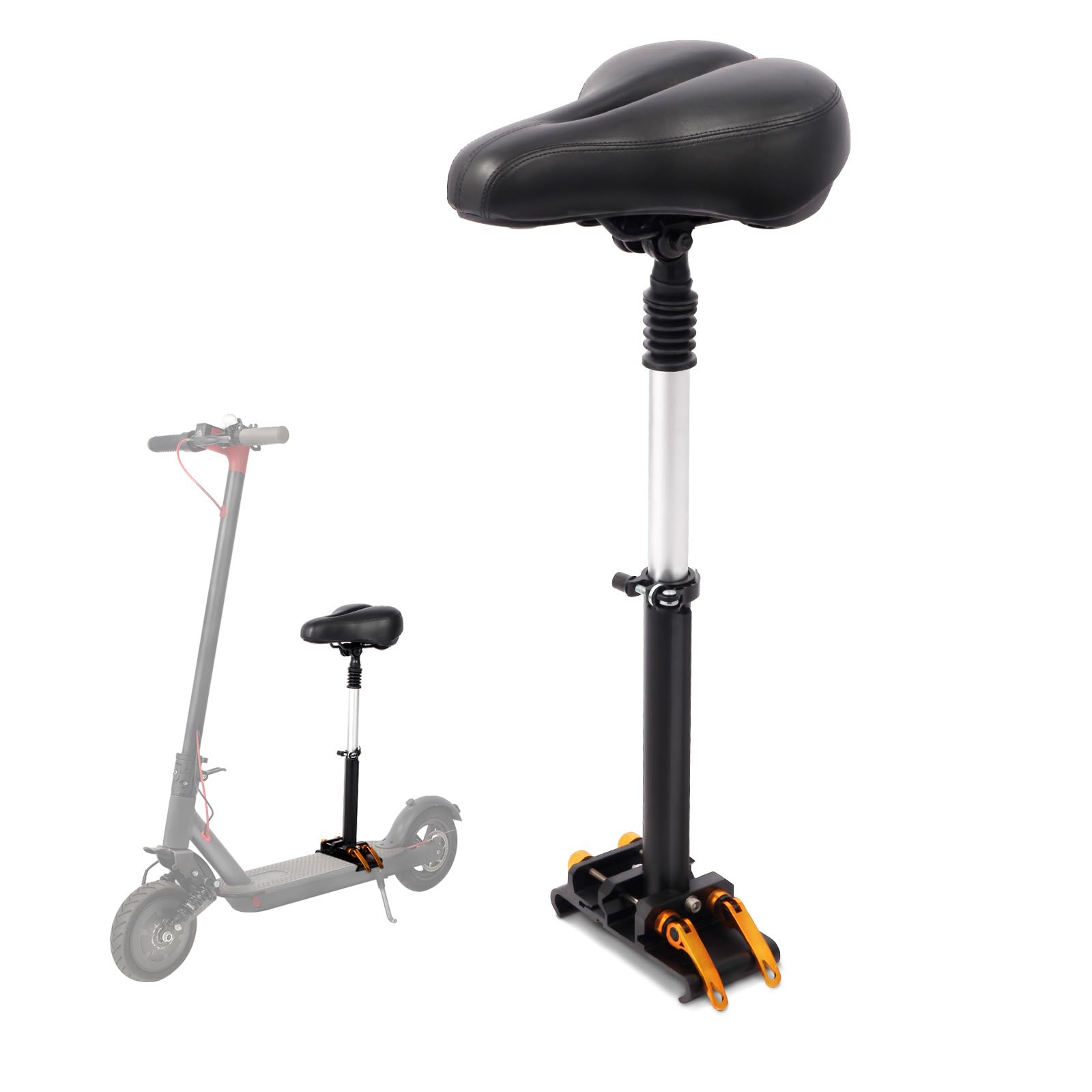

Figure 7: Scooter seat installed on an electric scooter, demonstrating adjustable height.

6. Техникалық қызмет көрсету

Regular maintenance ensures the longevity and safe operation of your scooter seat.

• Тазалау: Wipe the seat cushion with a damp cloth and mild soap. Avoid harsh chemicals that may damage the material. Clean the metal parts with a dry or slightly damp мата.
• Бекіткіштерді тексеріңіз: Барлық бұрандалар мен тығындарды мезгіл-мезгіл тексеріп отырыңызamps to ensure they are securely tightened. Loose fasteners can lead to instability and potential safety hazards.
• Майлау: If the height adjustment mechanism feels stiff, apply a small amount of silicone-based lubricant to the telescopic tube.
• Сақтау орны: When not in use for extended periods, store the scooter and seat in a dry, cool place away from direct sunlight and extreme temperatures.

7. Ақаулықтарды жою

• Жетіспейтін бөліктер: If any components are missing from your package, please contact Yungeln customer support immediately for assistance.
• Seat Not Securing Properly:
  • Барлық бұрандалар мен бекіткіштердіңampлар толығымен тартылған.
  • Verify that the base is correctly aligned with the scooter's footboard.
  • Check for any obstructions preventing a secure fit.
• Seat Slips Down After Adjustment:
  • Ensure the height adjusting clip/clamp мықтап тартылады.
  • clamp for any damage or wear that might prevent it from holding securely.

8. Техникалық сипаттамалар

9. Үйлесімділік

This Yungeln Electric Scooter Seat is compatible with the following models:

• Xiaomi M365 Electric Scooter
• Xiaomi M365 Pro Electric Scooter

The mounting base is designed for scooters with a footboard length of 5.90 inches and a height of 2.75 inches where the seat attaches.

Figure 8: Compatibility details and required scooter dimensions.

10. Тұтынушыларға қолдау көрсету

For any questions, concerns, or if you encounter issues such as missing mounting screws, please contact Yungeln customer support. We are committed to providing assistance and ensuring your satisfaction.

You can typically find contact information on the product packaging or through the retailer where you purchased the item.
