GLEDOPTO ESP32 WLED Digital LED Controller User Manual

1. Кіріспе

This manual provides comprehensive instructions for the installation, operation, and maintenance of your GLEDOPTO ESP32 WLED Digital LED Controller. This advanced controller is designed to manage addressable LED strips, offering dynamic lighting effects, sound reactivity, and smart home integration. Please read this manual carefully before use to ensure proper functionality and safety.

Image 1.1: GLEDOPTO ESP32 WLED Digital LED Controller overview.

2. Қауіпсіздік туралы ақпарат

• Кіріс көлемін қамтамасыз етіңізtage (DC 5-12-24V) matches your power supply and LED strip requirements. Incorrect voltage can damage the device and LED strips.
• Do not exceed the total output current of 15A or 10A per channel. Overloading can cause overheating and damage.
• Install the controller in a dry environment, suitable for indoor use only. Avoid exposure to moisture or extreme temperatures.
• Қосылу немесе техникалық қызмет көрсету жұмыстарын жүргізбес бұрын қуатты ажыратыңыз.
• Балалардың қолы жетпейтін жерде сақтаңыз.

3. Пакет мазмұны

Пакетте барлық элементтердің бар екенін тексеріңіз:

• 1 x GLEDOPTO ESP32 WLED Digital LED Controller (Model: GL-C-016WL-D)
• 1 x 3cm Trigger (likely a small wire or component for specific functions)
• 1 x Пайдаланушы нұсқаулығы

4. Өнім аяқталдыview

The GLEDOPTO ESP32 WLED Digital LED Controller is a versatile device for controlling addressable LED strips. Key features include:

• ESP32 чипі: High-performance processing and stable Wi-Fi connectivity.
• WLED Integration: Direct control via the WLED application, no gateway required.
• Динамикалық жарықтандыру: Over 100 built-in dynamic modes and customizable effects.
• Кірістірілген микрофон: Enables sound-reactive lighting effects.
• USB-C UART Interface: For easy firmware updates.
• Кең үйлесімділік: Supports various addressable LED strip types (e.g., WS2811, WS2812, SK6812, TM1814, WS2813, WS2815).
• Smart Home дайын: Amazon Alexa-мен үйлесімді.

Image 4.1: Supported Addressable LED Strip Types.

5. Орнату және орнату

5.1 Wiring the LED Strip

Follow these steps to connect your addressable LED strip to the controller:

1. Identify the data (DAT), ground (GND), and power (V+) wires of your LED strip.
2. Locate the quick-connect terminals on the GLEDOPTO controller.
3. Open the connector upwards: Gently lift the lever on the terminal block to open the wire entry point.
4. Сымды салыңыз: Carefully insert the stripped end (10mm stripping length recommended) of the LED strip wire into the corresponding terminal (V+, GND, Data). Ensure a secure connection.
5. Төмен басыңыз: Push the lever back down to secure the wire in place.
6. Repeat for all necessary connections (V+, GND, Data).

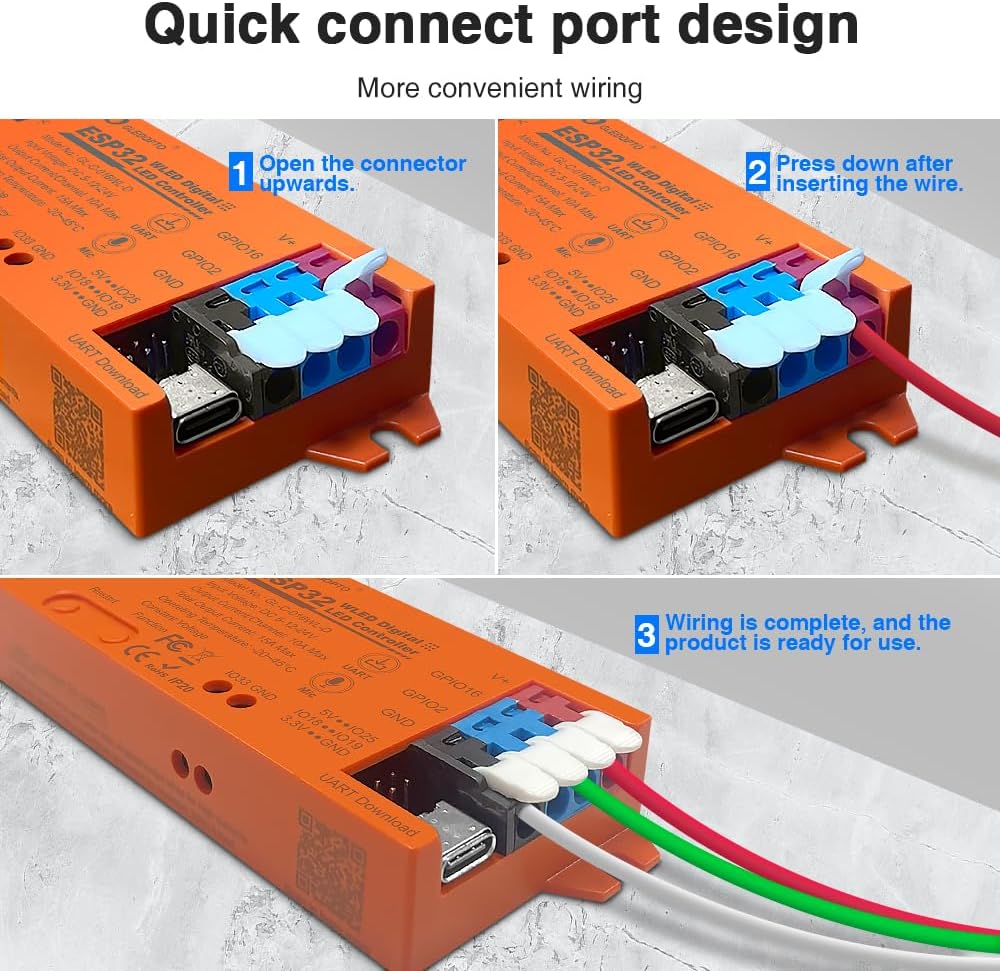

Image 5.1: Quick Connect Port Wiring Guide.

5.2 Қуат қосылымы

Connect a DC 5-12-24V power supply to the controller's input terminals. Ensure the polarity is correct (V+ to V+, GND to GND). The controller supports a total output current of up to 15A, with a maximum of 10A per channel. Select a power supply appropriate for your LED strip's total power consumption.

6. Пайдалану нұсқаулары

6.1 WLED Application Control

The GLEDOPTO controller integrates seamlessly with the WLED application, allowing for intuitive control via Wi-Fi. No additional gateway is required.

1. Download WLED App: Іздеу "WLED" in your smartphone's app store and install it.
2. Connect to Controller's Wi-Fi: Power on the controller. On your smartphone, go to Wi-Fi settings and connect to the Wi-Fi network broadcast by the controller (usually named "WLED-AP" followed by some numbers).
3. Желіні конфигурациялау: Open the WLED app. It should detect the controller. Follow the in-app instructions to connect the controller to your home Wi-Fi network.
4. Басқару жарығы: Once connected to your home network, you can use the WLED app to select from over 100 dynamic modes, customize colors, brightness, and create personalized lighting effects.

Image 6.1: WLED App Control Interface.

6.2 Микрофон функциясы

The built-in sensitive microphone allows the LED lights to react to ambient sounds, especially music. This creates dynamic lighting effects that synchronize with audio, enhancing your environment.

• To activate sound-reactive modes, select the appropriate effect within the WLED application.
• Ensure the microphone is not obstructed for optimal performance.

Image 6.2: Microphone Function in action.

6.3 Firmware Updates (UART)

The controller features a USB-C UART interface for convenient firmware updates, ensuring your device always has the latest features and improvements.

1. Connect the controller to your computer using a USB-C cable.
2. Access the UART download function (refer to WLED documentation for specific software and procedures).
3. Download the latest firmware (e.g., WLED_x.xx.x_ESP32.bin) and flash it to the controller.

Image 6.3: USB-C Interface for Firmware Updates.

Image 6.4: UART Download via Type-C Port.

6.4 Smart Home интеграциясы

The controller is highly compatible with Amazon Alexa, allowing you to control your lighting with voice commands. Refer to the WLED documentation and Alexa app for setup instructions.

7. Техникалық сипаттамалар

Image 7.1: GLEDOPTO Controller Product Parameters.

8. Ақаулықтарды жою

If you encounter issues with your GLEDOPTO ESP32 WLED Digital LED Controller, refer to the following common problems and solutions:

• Жарықдиодты шамдар жанбайды:
  • Check power supply connection and ensure correct voltage (DC 5-12-24V) and polarity.
  • Verify LED strip wiring (Data, V+, GND) is correct and secure.
  • Ensure the LED strip type selected in the WLED app matches your physical strip.
  • Confirm the power supply provides sufficient current for your LED strip length.
• Wi-Fi желісіне қосылу мүмкін емес:
  • Ensure the controller is powered on and within range of your Wi-Fi router.
  • Try restarting the controller.
  • If connecting to the controller's access point (AP mode), ensure your phone is disconnected from other Wi-Fi networks.
  • Verify correct Wi-Fi credentials if connecting to your home network.
• Lights are flickering or behaving erratically:
  • Бос сым қосылымдарын тексеріңіз.
  • Ensure the power supply is stable and adequate for the number of LEDs.
  • Consider adding a capacitor across the power lines near the LED strip if flickering persists, especially with long strips.
  • Verify the data line is not too long or experiencing interference.
• Microphone function not responding:
  • Ensure a sound-reactive mode is selected in the WLED app.
  • Check that the microphone port on the controller is not obstructed.
  • Аудио көзінің дыбыс деңгейін арттырыңыз.

9. Техникалық қызмет көрсету

• Тазалау: Use a soft, dry cloth to clean the controller. Do not use liquid cleaners or solvents.
• Қоршаған орта: Keep the controller in a clean, dry, and well-ventilated area. Avoid dusty or humid environments.
• Микробағдарлама: Regularly check for and install firmware updates via the USB-C UART interface to ensure optimal performance and access to new features.

10. Кепілдік және қолдау

GLEDOPTO products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please contact your retailer or visit the official GLEDOPTO website. Please have your model number (GL-C-016WL-D) and purchase information ready when contacting support.
