TESSAN TUS-9 Compact 200W 220V to 110V Travel Voltage түрлендіргіші

1. Кіріспе

Thank you for choosing the TESSAN TUS-9 Compact 200W 220V to 110V Travel Voltage Converter. This device is designed to safely convert foreign 220-240V electricity to 110-120V, allowing you to use your US-standard electronics in countries with higher voltage. It also features multiple USB charging ports and comes with various international plug adapters for global compatibility. Please read this manual thoroughly before use to ensure proper operation and safety.

2. Өнім аяқталдыview

2.1 Пакет мазмұны

• 1 x TESSAN TUS-9 Voltage түрлендіргіші
• 1 x ЕО қуат кабелі
• 4 x International Plug Adapters (Type G, I, L, D)
• 1 х Саяхат дорбасы

2.2 Құрылғы мүмкіндіктері

The TESSAN TUS-9 converter is equipped with:

• 2 AC Outlets (US standard, 100-120V output)
• 1 USB-A Charging Port (5V/2.4A Max)
• 1 USB-C Charging Port (5V/2.4A Max)
• AC Switch with Indicator Light
• Қалпына келтіру түймесі

1-сурет: TESSAN TUS-9 Voltage Converter and its included accessories. This image displays the compact white converter unit, the detachable EU power cable, and the four international plug adapters (Type G, I, L, D) that come with the product, all neatly arranged.

3. Орнату

3.1 Қуат кабелі мен адаптерді қосу

1. Connect the provided EU power cable to the input port of the TESSAN TUS-9 converter.
2. Select the appropriate international plug adapter for the country you are visiting. The converter includes Type G (UK), Type I (AU), Type L (IT), and Type D (India) adapters. The EU power cable itself serves as a Type C plug.
3. Attach the selected international plug adapter to the EU power cable. Ensure it is securely connected.

2-сурет: Illustration of the different international plug adapters. This image shows the Type C (EU), Type G (UK), Type L (Italy), Type I (Australia), and Type D (India) plug adapters, highlighting their distinct pin configurations for various regions worldwide.

3.2 Plugging into a Wall Outlet

Insert the assembled power cable and adapter into a wall outlet in your destination country. The converter is designed to accept 220-240V AC input.

3.3 Қуатты қосу

Press the AC Switch on the converter to turn it on. The indicator light will illuminate to show the device status.

4. Пайдалану нұсқаулары

4.1 томtage Түрлендіру

The TESSAN TUS-9 converter transforms 220-240V AC input voltage to a stable 100-120V AC output. This allows you to safely use US-standard appliances that operate within the 100-120V range.

3-сурет: Visual representation of voltage conversion. This image shows the TESSAN converter plugged into a 220-240V AC European wall outlet, with arrows indicating the conversion to 100-125V AC output for connected devices like a phone and an electric shaver.

4.2 Айнымалы ток розеткаларын пайдалану

Plug your 100-120V AC appliances into the two AC outlets on the converter. The total power consumption of all connected AC devices must not exceed 200 Вт. This converter is suitable for low to medium-power devices such as hair straighteners, curling irons, electric toothbrushes, and portable fans.

ЕСКЕРТУ: Do not use devices with power exceeding 200W. This includes high-power appliances like hair dryers, electric irons, kettles, or ovens, as this can damage the converter and your devices, and pose a safety risk.

4.3 USB зарядтау порттарын пайдалану

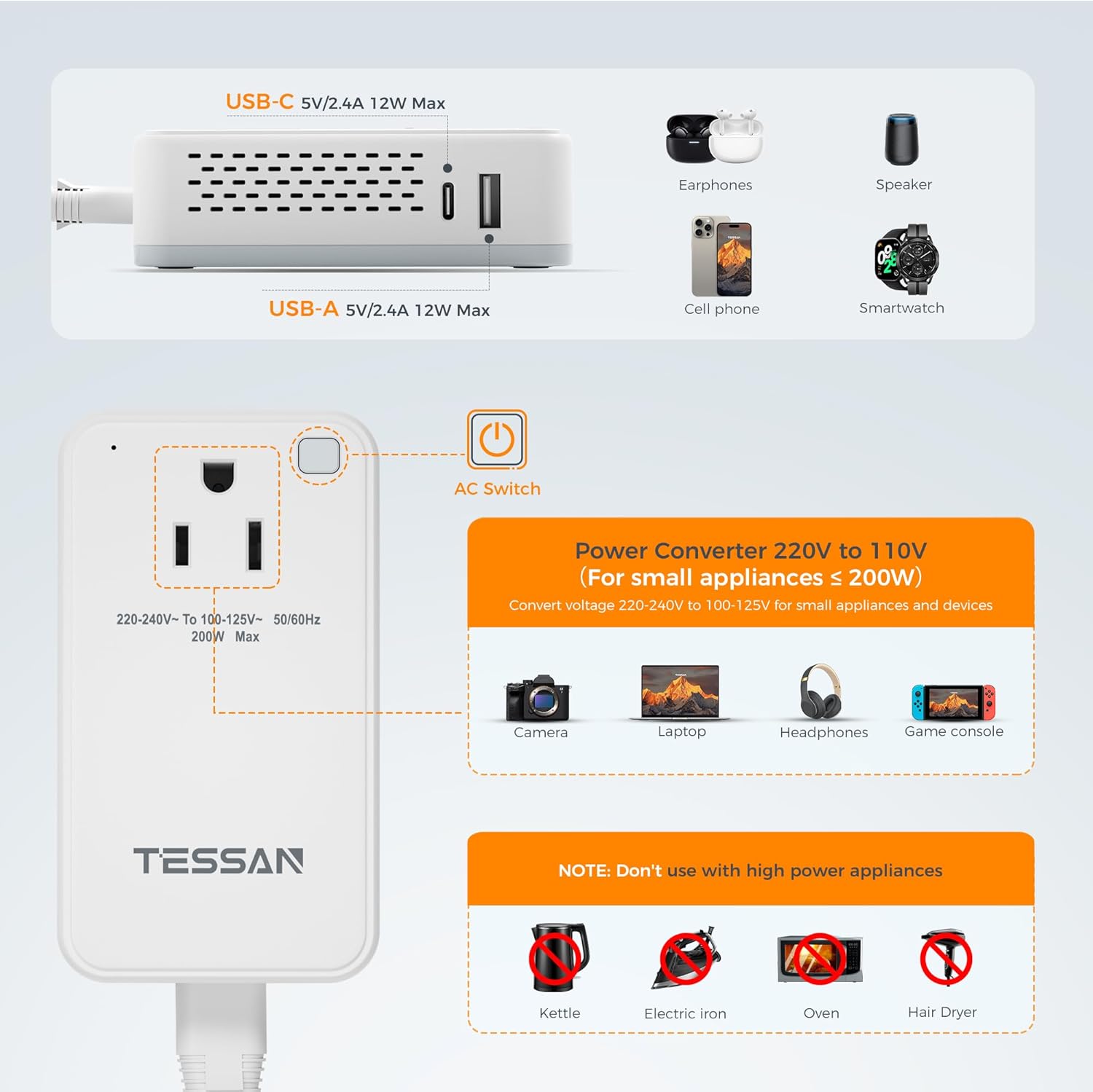

The converter features one USB-A and one USB-C port, each providing up to 5V/2.4A (12W Max total output). These ports are ideal for charging smartphones, tablets, laptops, cameras, and other USB-powered devices. You can charge up to 4 devices simultaneously (2 AC, 2 USB).

4-сурет: The converter in use, demonstrating simultaneous charging of a laptop, smartphone, and wireless earbuds. This image highlights the two AC outlets and two USB ports (USB-A and USB-C) being utilized to power various electronic devices, with a clear warning not to exceed 200W for AC appliances.

4.4 Индикатор шамының күйі

• Жасыл шам қосулы: All functions (AC outlets and USB ports) are working normally.
• Қызыл шам қосулы: Only the USB ports are working. This may indicate an issue with the AC conversion or an overload.
• Light Blinking: The AC outlets are not working. This typically indicates an overload, over-voltage, overheating, or short circuit protection has been triggered.

5-сурет: Explanation of the indicator light states. This image visually depicts the red, green, and blinking light indicators on the converter, explaining what each state signifies regarding the functionality of the USB ports and AC outlets.

4.5 Қалпына келтіру түймесі

If the converter triggers its protection mechanism (e.g., due to overload) and the light is blinking, disconnect the problematic device(s). After troubleshooting, press the reset button to resume normal operation. The light should turn green.

5. Техникалық қызмет көрсету

5.1 Тазалау

To clean the converter, ensure it is unplugged from the wall outlet and all devices are disconnected. Wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.

5.2 Сақтау

When not in use, store the converter and its accessories in the provided travel pouch in a cool, dry place, away from direct sunlight and moisture. Always unplug the device from the electrical outlet when not in use to ensure safety and prolong its lifespan.

6-сурет: The TESSAN converter and its adapters stored in the included travel bag. This image illustrates how the compact design and travel pouch make the converter easy to pack and carry, fitting conveniently into luggage alongside clothing and other travel essentials.

6. Ақаулықтарды жою

• Converter not turning on (no light):
  Ensure the EU power cable is securely connected to the converter and the wall outlet. Verify the wall outlet is functional. Press the AC Switch firmly.
• AC outlets not working (light blinking or red):
  This indicates a safety protection has been triggered (overload, over-voltage, overheating, or short circuit). Disconnect all connected devices. Check if any device exceeds the 200W limit. Wait a few minutes, then press the reset button. Reconnect devices one by one to identify the problematic one.
• USB порттары зарядталмайды:
  Ensure the converter is powered on (green or red light). Check the USB cables and devices for proper connection and functionality. The total USB output is 12W Max; ensure total power draw does not exceed this.
• Unusual noise or heat:
  While the converter is designed for quiet operation with heat dissipation, excessive noise or heat may indicate an issue. Immediately unplug the device and disconnect all appliances. Contact customer support if the issue persists.

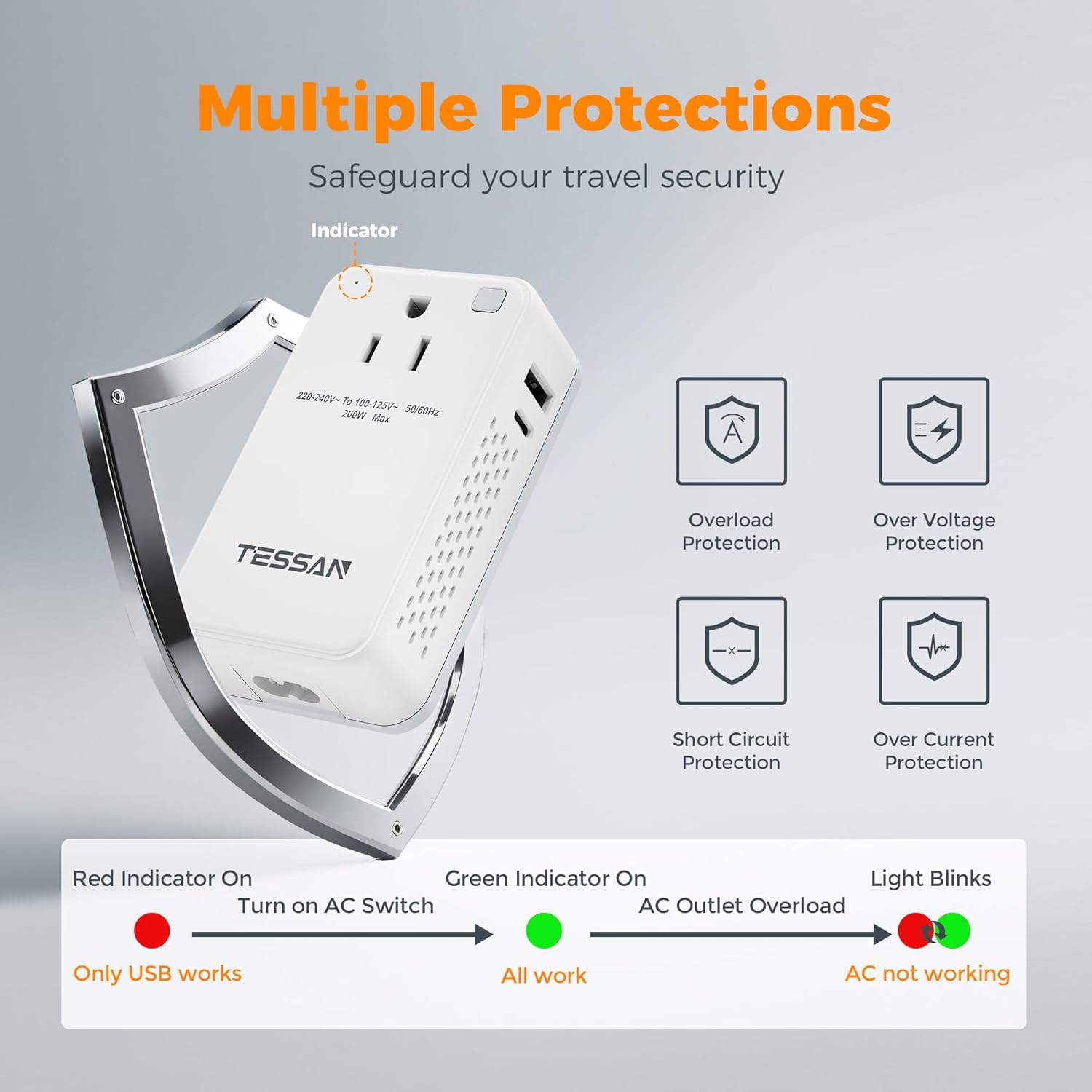

7-сурет: Diagram illustrating the multiple protection features of the TESSAN converter. This image highlights the built-in safeguards against overload, over-voltage, short circuit, and over-current, ensuring device and user safety during operation.

7. Техникалық сипаттамалар

8. Кепілдік және қолдау

8.1 Кепілдік туралы ақпарат

The TESSAN TUS-9 Voltage Converter comes with an 18 айлық кепілдік from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or use with incompatible high-power appliances.

8.2 Тұтынушыларды қолдау қызметі

If you encounter any issues or have questions regarding your TESSAN TUS-9 converter, please contact TESSAN customer support. Refer to the product packaging or the official TESSAN webең соңғы байланыс ақпараты үшін сайт.
