GeoTech Front Brake Rotor Model 2054097 Instruction Manual

1. Кіріспе

This instruction manual provides important information regarding the GeoTech Front Brake Rotor, Model 2054097. It covers product overview, safety guidelines, installation procedures, break-in recommendations, maintenance, and specifications. This brake rotor is designed for specific Ford and Mazda vehicle models manufactured between 2001 and 2011.

The GeoTech brake rotor is a fully coated, corrosion-protected component engineered for consistent and reliable braking performance. It undergoes multi-stage quality control to ensure precise fitment and adherence to dimensional and weight specifications.

2. Қауіпсіздік туралы ақпарат

Ескерту: Brake system components are critical for vehicle safety. Improper installation or maintenance can lead to serious injury or death. It is highly recommended that installation be performed by a qualified automotive technician.

• Тежегіш жүйелерінде жұмыс істеген кезде әрқашан қауіпсіздік көзілдірігі мен қолғапты қоса алғанда, тиісті жеке қорғаныс құралдарын (ЖҚҚ) киіңіз.
• Кез келген жұмысты бастамас бұрын көліктің домкрат тіректерінде мықтап бекітілгеніне көз жеткізіңіз. Ешқашан тек ұяға сенбеңіз.
• Allow brake components to cool completely before handling to prevent burns.
• Тежегіш сұйықтығын боялған беттерден алыс ұстаңыз, себебі ол бояуды зақымдауы мүмкін.
• Ескі тежегіш бөлшектері мен сұйықтықтарды жергілікті қоршаған ортаны қорғау ережелеріне сәйкес тастаңыз.

3. Пакет мазмұны

Қаптаманы ашқан кезде барлық компоненттердің бар екенін және зақымдалмағанын тексеріңіз.

• 1 x GeoTech Front Brake Rotor (Model 2054097)

4. Орнату

This section outlines the general steps for installing the GeoTech Front Brake Rotor. Refer to your vehicle's specific service manual for detailed instructions and torque specifications.

1. Көлікті дайындау: Park the vehicle on a level surface, engage the parking brake, and block the rear wheels. Loosen the lug nuts on the front wheels.
2. Көтеру және бекіту: Safely lift the front of the vehicle using a jack and support it with jack stands. Remove the front wheels.
3. Калиперді алып тастаңыз: Тежегіш суппортын бекіту кронштейнінен ажыратыңыз. Суппорттың тежегіш шлангынан ілініп тұруына жол бермеңіз; оны сыммен немесе банджи бауымен тіреңіз.
4. Суппорт кронштейнін алып тастаңыз: Remove the caliper mounting bracket from the steering knuckle.
5. Ескі роторды алып тастаңыз: Remove any retaining screws or clips holding the old brake rotor in place. The rotor may be seized to the hub; use a rubber mallet to gently tap it loose if necessary.
6. Таза хаб беті: Thoroughly clean the wheel hub mounting surface to remove any rust, dirt, or debris. A clean surface is crucial for proper rotor seating and to prevent runout.
7. Жаңа роторды орнату: Place the new GeoTech Front Brake Rotor onto the wheel hub. Ensure it sits flush against the hub surface.
8. Суппорт кронштейнін қайта орнату: Reinstall the caliper mounting bracket and torque bolts to manufacturer specifications.
9. Калибрді қайта орнату: Reinstall the brake caliper, ensuring new brake pads are properly seated. Torque caliper bolts to manufacturer specifications.
10. Тежегіштер (қажет болса): If the brake lines were opened, bleed the brake system according to the vehicle manufacturer's procedure.
11. Дөңгелектерді қайта орнату: Reinstall the wheels, hand-tighten lug nuts, lower the vehicle, and then torque lug nuts to manufacturer specifications.

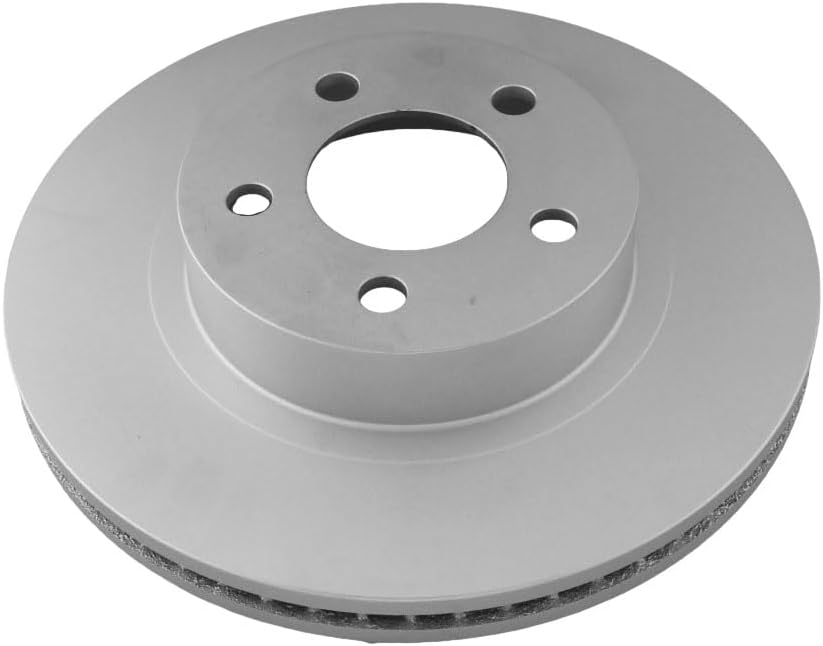

This image displays the GeoTech Front Brake Rotor from a top-down perspective, highlighting the smooth braking surface and the central mounting hub with bolt holes. This view is typical for initial inspection of the rotor's condition.

Бұл сурет бұрышты көрсетеді view of the GeoTech Front Brake Rotor, showcasing its vented design. The internal fins are visible, which are crucial for dissipating heat generated during braking, ensuring consistent performance and preventing warping.

5. Operating (Brake Break-in Procedure)

Proper break-in of new brake rotors and pads is essential for optimal performance and longevity. This process helps to transfer a thin, even layer of friction material from the pads to the rotor surface.

1. Initial Stops: Perform 5-10 moderate stops from 30-35 mph (48-56 km/h) down to 5-10 mph (8-16 km/h). Allow approximately 30 seconds between stops for the brakes to cool slightly. Avoid coming to a complete stop during this phase.
2. Басылыңыз: After the initial stops, drive for several minutes without using the brakes excessively to allow them to cool down.
3. Repeat (if necessary): For some applications, a second set of 5-10 moderate stops may be beneficial. Consult your brake pad manufacturer's recommendations.
4. Avoid Hard Braking: For the first 200-300 miles (320-480 km) after installation, avoid sudden, hard braking or prolonged heavy braking. This allows the pads and rotors to fully seat.

6. Техникалық қызмет көрсету

Тежегіш жүйеңізді жүйелі түрде тексеру және техникалық қызмет көрсету қауіпсіздік пен өнімділік үшін өте маңызды.

• Кәдімгі тексеру: Inspect brake rotors for signs of wear, cracks, deep grooves, or discoloration during tire rotations or other vehicle servicing.
• Тақтаны ауыстыру: Replace brake pads when they reach their minimum thickness. Always replace rotors when replacing pads if the rotors are worn beyond manufacturer specifications or show significant damage.
• Тазалық: Keep brake components free from oil, grease, and other contaminants.
• Сұйықтықты тексеру: Regularly check brake fluid level and condition. Replace brake fluid according to your vehicle manufacturer's recommendations.

7. Ақаулықтарды жою

If you experience any issues with your brake system after installing the GeoTech Front Brake Rotor, consider the following common problems and potential causes:

• Тежеу шуы (сықырлау/шылау):
  • Себебі: Improper break-in, worn pads, foreign material between pad and rotor, caliper issues, or lack of lubrication on caliper slides.
  • Әрекет: Re-evaluate break-in, inspect pads, clean components, check caliper function.
• Brake Vibration/Pulsation:
  • Себебі: Rotor runout (improper seating), warped rotors (due to overheating or improper torque), uneven pad material transfer.
  • Әрекет: Re-check hub cleanliness and rotor seating, ensure proper lug nut torque, re-perform break-in procedure.
• Төмендетілген тежеу ​​өнімділігі:
  • Себебі: Air in brake lines, contaminated pads/rotors, worn components, or improper break-in.
  • Әрекет: Bleed brake system, inspect for contamination, ensure proper break-in.

Ақаулықтарды жою қадамдары мәселені шешпесе, білікті автокөлік техникіне хабарласыңыз.

8. Техникалық сипаттамалар

9. Кепілдік және қолдау

GeoTech products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. Keep your proof of purchase for warranty claims.
