Bomann KSG7289 244L Beverage Cooler Instruction Manual

Қауіпсіздік туралы маңызды ақпарат

Please read this instruction manual carefully before using the appliance and keep it for future reference. This manual provides essential information for the safe installation, operation, and maintenance of your Bomann KSG7289 beverage cooler.

• Бұл құрылғы коммерциялық мақсатта пайдалануға арналған.
• Құрылғының тұрақты, тегіс бетке қойылғанына көз жеткізіңіз.
• Do not obstruct ventilation openings in the appliance enclosure or in the built-in structure.
• Жібіту процесін жеделдету үшін өндіруші ұсынғаннан басқа механикалық құрылғыларды немесе басқа құралдарды пайдаланбаңыз.
• Салқындатқыш зат тізбегін зақымдамаңыз.
• Өндіруші ұсынған үлгіде болмаса, электр құрылғыларын құрылғының тағам сақтайтын бөліктерінің ішінде пайдаланбаңыз.
• The appliance must be disconnected from the power supply before any maintenance or cleaning.

Орнату және орнату

Қаптаманы ашу

Carefully remove all packaging materials. Inspect the appliance for any damage during transit. If damage is found, do not operate the appliance and contact your supplier immediately. Keep packaging materials out of reach of children.

Орналастыру

Place the beverage cooler in a well-ventilated area, away from direct sunlight and heat sources such as ovens or radiators. Ensure there is adequate space around the appliance for proper air circulation. The operating environment should have an ambient temperature of ≤ 25°C (not less than 10°C) and humidity of 60%.

Image: Appliance Dimensions. This image illustrates the overall dimensions of the Bomann KSG7289 beverage cooler, which are 143 cm (height) x 55 cm (width) x 58 cm (depth). Proper spacing around the unit is crucial for efficient operation.

Сөрені орнату

The cooler comes with five wire shelves, four of which are height-adjustable. Install the shelves into the desired positions. Each shelf can hold a maximum load of 35 kg.

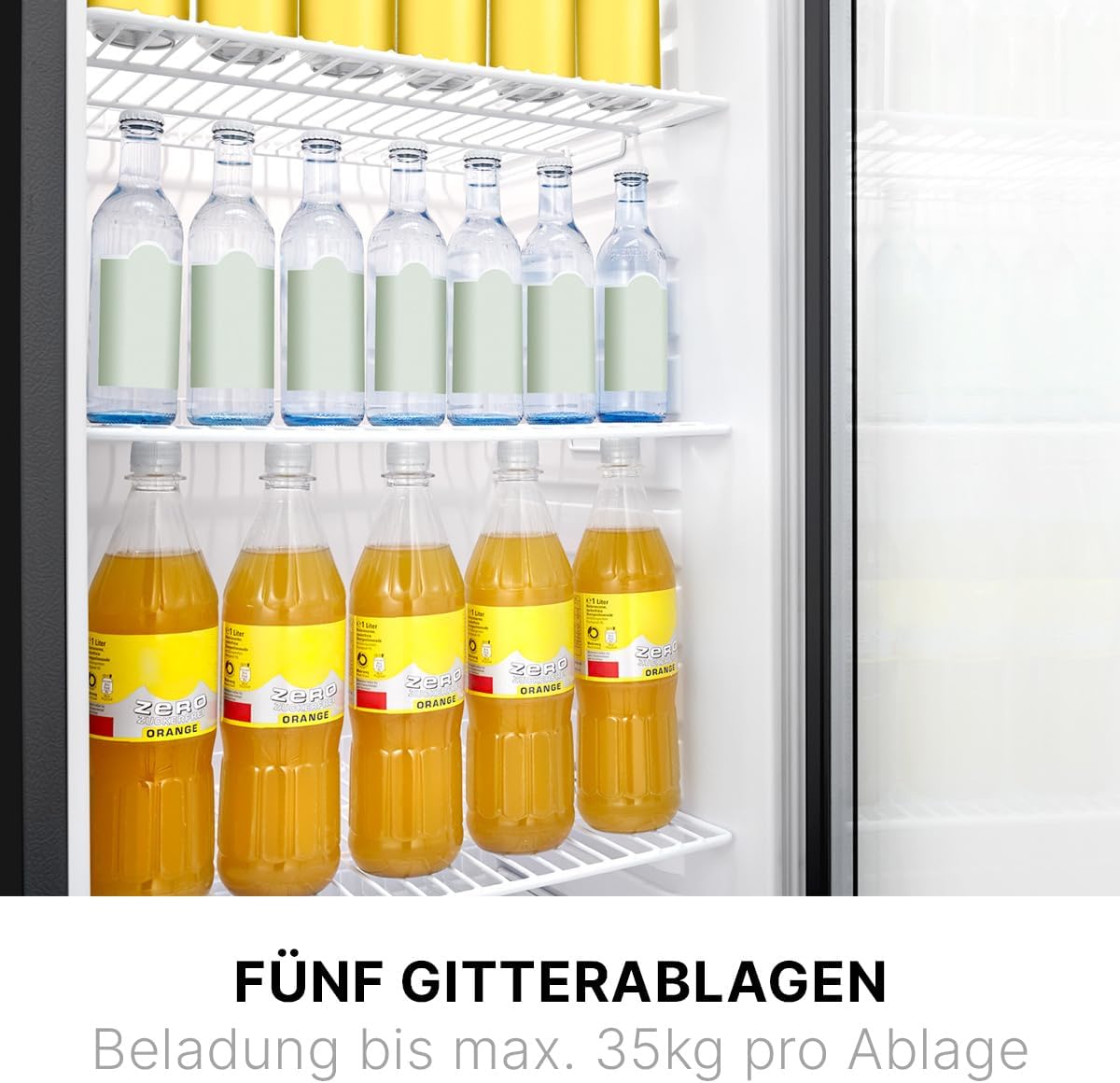

Image: Five Wire Shelves. This image displays the interior of the beverage cooler, highlighting the five wire shelves designed to hold various beverages. Each shelf is capable of supporting up to 35 kg.

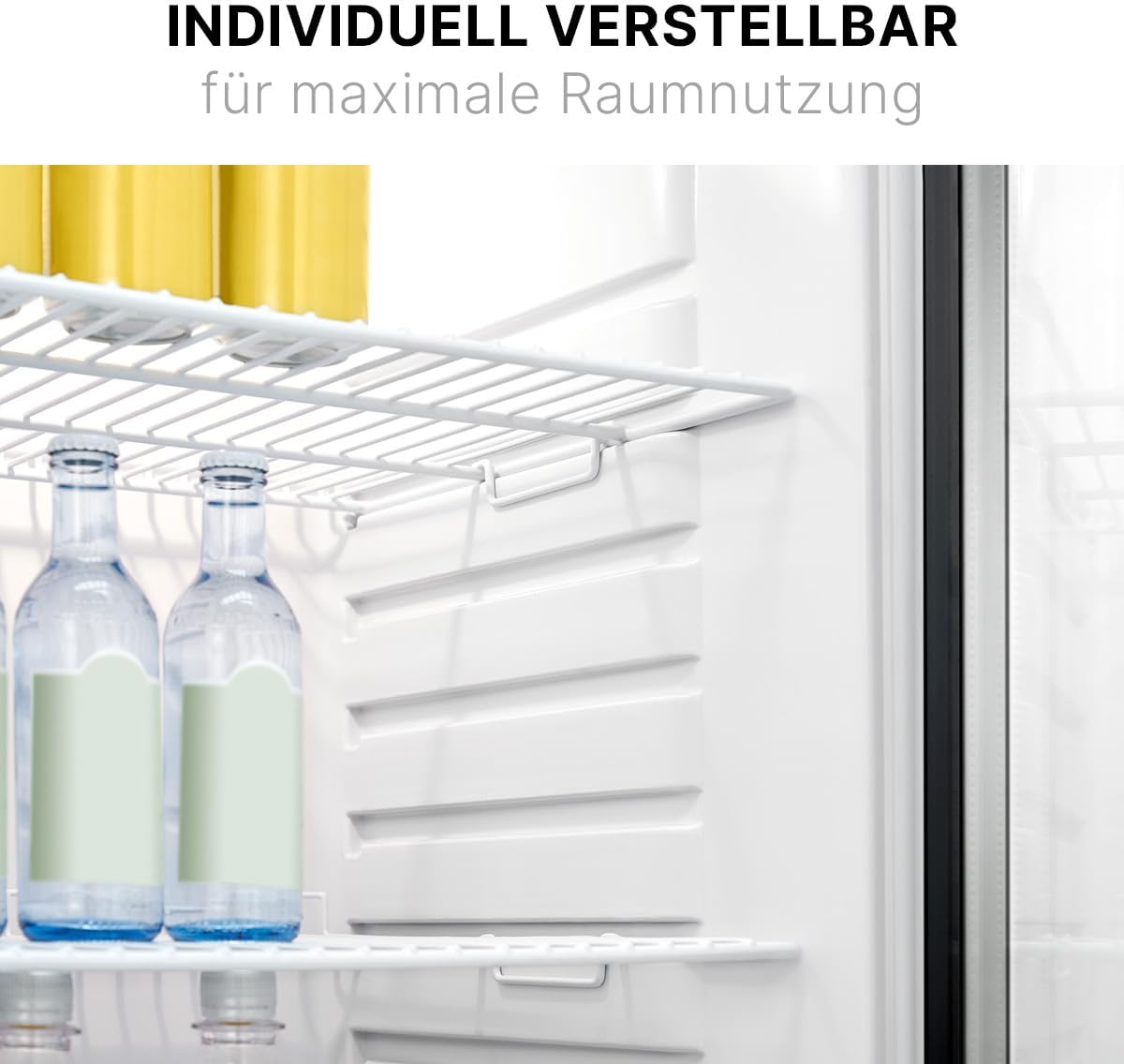

Image: Individually Adjustable Shelves. Бұл жақыннан view demonstrates the individual adjustability of the shelves, allowing for flexible storage configurations to maximize space utilization within the cooler.

Есікті қайтару

The door hinge is set to the right by default but is reversible. Refer to the detailed diagram in the full manual for instructions on how to reverse the door swing if needed.

Бастапқы қосу

After placement, wait at least 2-4 hours before plugging the appliance into a power outlet. This allows the refrigerant to settle. Plug the appliance into a grounded 220-240 V~ / 50 Hz power outlet.

Пайдалану нұсқаулары

Температураны бақылау

The beverage cooler features stepless temperature adjustment. The temperature range is between +2°C and +12°C. Use the thermostat dial, typically located inside the cooler, to set your desired temperature. Turn the dial to a higher number for colder temperatures and a lower number for warmer temperatures.

Image: Temperature Control. This image highlights the temperature range of +2°C to +12°C and the stepless temperature control feature, allowing precise adjustment of the cooling level.

Жарықдиодты ішкі жарықтандыру

The appliance is equipped with LED interior lighting, which can be switched on or off separately. This allows for better visibility of the contents and can be controlled independently of the cooling function.

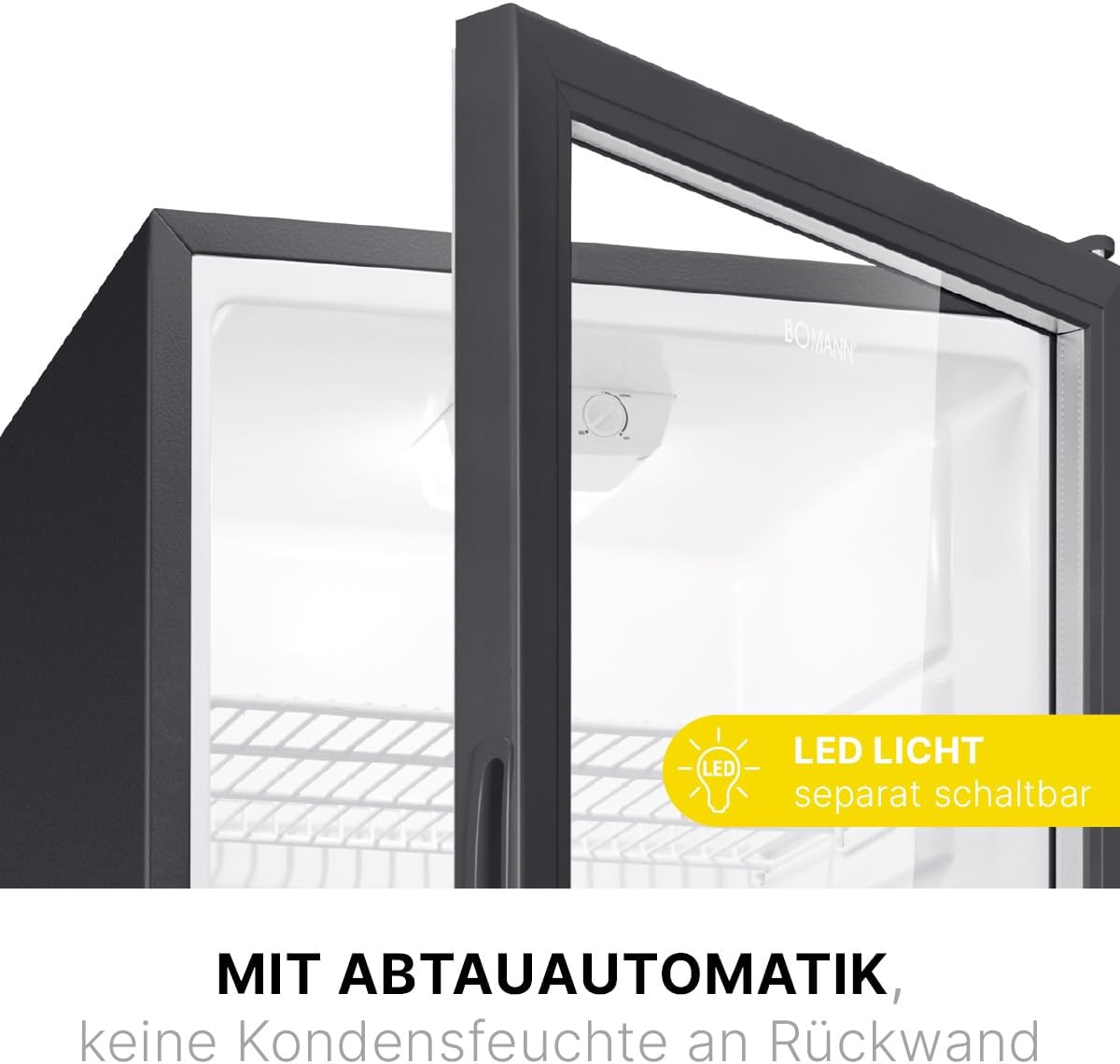

Image: LED Light and Automatic Defrost. This image shows the switchable LED interior light and indicates the presence of an automatic defrost system, which prevents condensation buildup on the back wall.

Loading Guidelines

Do not overload the shelves. Ensure that bottles or cans are placed securely to prevent them from falling. Allow space between items for proper air circulation, which helps maintain consistent temperatures throughout the cooler.

Техникалық қызмет көрсету

Тазалау

Always unplug the appliance before cleaning. Clean the interior and exterior surfaces regularly with a soft cloth and a mild detergent. Avoid abrasive cleaners or solvents. The double-glazed door should be cleaned with glass cleaner. Ensure all surfaces are dry before plugging the appliance back in.

Автоматты еріту

The Bomann KSG7289 features an automatic defrost function. This system prevents the buildup of ice and condensation on the back wall, eliminating the need for manual defrosting. Water from defrosting is evaporated automatically.

Қуатты үнемдеу бойынша кеңестер

• Do not place hot food or beverages in the cooler.
• Avoid opening the door too frequently or for extended periods.
• Ensure the door seal is clean and intact to prevent cold air leakage.
• Place the appliance in a cool, well-ventilated room.

Ақаулықтарды жою

Тұтынушыларға қызмет көрсету орталығына хабарласпас бұрын келесі жалпы мәселелер мен шешімдерді тексеріңіз:

Өнімнің техникалық сипаттамалары

Image: 244L Beverage Cooler. This image provides a full front view of the Bomann KSG7289 244L beverage cooler, highlighting its double-glazed front door and internal shelving arrangement.

Кепілдік және қолдау

For warranty information, technical support, or spare parts, please refer to the warranty card included with your purchase or contact Bomann customer service directly. Keep your proof of purchase for any warranty claims.
