ATOTO P807PR

ATOTO P807PR Portable Car Stereo Instruction Manual

Model: P807PR

Кіріспе

This manual provides detailed instructions for the installation, operation, and maintenance of your ATOTO P807PR Portable Car Stereo. Please read this manual thoroughly before using the device to ensure proper function and safety.

Пакет мазмұны

Төменде тізімделген заттардың барлығы пакетіңізге қосылғанын тексеріңіз:

  • P8 On-Dash Navigator
  • AC-44F6 Steering Remote Control
  • Қуат кабелі
  • Жабысқақ тақта
  • AUX кабелі
ATOTO P8 Portable Car Stereo and included accessories
Image: The ATOTO P8 Portable Car Stereo unit and its included accessories, such as the main unit, remote control, power cable, sticky pad, and AUX cable.
What's in the Package for ATOTO P807PR
Сурет: егжей-тегжейлі view of the ATOTO P807PR package contents, including the P8 On-Dash Navigator, sticking holder, power cable, sticky pad, holder adapter, AUX cable, AC-FCR01W Front Camera, 3.5mm Microphone, Front Camera Extension Cable, AC-RCR01W Rear Camera, Rear Camera Extension Cable, USB-C Camera Plug, AC-44F6 Remote Control, Manual, and Quick Start Guide.

Орнату және орнату

The ATOTO P807PR is designed for easy, plug-and-play installation without requiring complex modifications to your vehicle's existing stereo system.

Құрылғыны орнату

The device can be mounted on your dashboard using the provided sticky pad and holder. Ensure the mounting surface is clean and dry for optimal adhesion.

ATOTO P807PR mounted on a dashboard
Image: The ATOTO P807PR unit mounted on a car dashboard, showing its position relative to the driver's view.
5-Minute Installation steps for ATOTO P8
Image: Visual guide demonstrating the simple 5-minute installation process for the ATOTO P8, showing how to attach the unit to the dashboard mount.
Strong Adhesive & Flexible Silicone Pad for ATOTO P8
Image: Close-up of the strong adhesive and flexible silicone pad designed for secure mounting of the ATOTO P8 on various dashboard surfaces.

Қуат қосылымы

Connect the power cable to your vehicle's cigarette lighter socket. The innovative design minimizes cable clutter on your dashboard.

Cigarette lighter adapter with QC 3.0 and AUX output
Image: The cigarette lighter adapter featuring QC 3.0 quick charge ports and an AUX output, designed for a clean dashboard setup.

The P807PR is compatible with most vehicles supporting 12V/24V power supply.

ATOTO P8 compatibility with 12V/24V vehicles
Image: Illustration showing the ATOTO P8's compatibility with various vehicle types (truck, camper, car, van, caravan, trailer) that support 12V/24V power supply.

Автокөлік стереосына қосылу

The P807PR offers four audio output options to connect to your car's audio system:

  • Блютез: Көлігіңіздің Bluetooth жүйесіне сымсыз қосылыңыз.
  • FM Transmitter (Stereo Type): Transmit audio to your car radio via an FM frequency.
  • AUX (Stereo Type): Use the provided AUX cable for a wired connection.
  • Кірістірілген динамик: For direct audio output from the P8 unit.
ATOTO P8 audio output options
Image: Diagram illustrating the four audio output options for the ATOTO P8: Bluetooth, FM Transmitter, AUX Audio Output, and the built-in speaker.
Steps to connect Wireless CarPlay/Android Auto
Image: Four-step guide for connecting Wireless CarPlay/Android Auto: Mount P8, plug into cigarette lighter, output audio to car stereo, and connect to P8's Bluetooth and Wi-Fi.

Пайдалану нұсқаулары

Сымсыз CarPlay және Android Auto

The P807PR supports wireless CarPlay and Android Auto, allowing seamless integration with your smartphone for navigation, music, calls, and messages.

ATOTO P807PR with Wireless CarPlay and Android Auto
Image: The ATOTO P807PR display showing both Wireless CarPlay and Wireless Android Auto interfaces, with a phone charging via QC 3.0.
Wireless Android Auto on ATOTO P8
Image: The ATOTO P8 display showcasing the Wireless Android Auto interface with various applications.
Online Maps with real-time traffic on ATOTO P8
Image: The ATOTO P8 displaying online maps with real-time traffic information, enhancing navigation.
Wireless Screen Mirroring (Auto Link) on ATOTO P8
Image: The ATOTO P8 demonstrating wireless screen mirroring (Auto Link) from a smartphone to its large display.

Most apps not compatible with CarPlay or Android Auto can be cast to the P8's large screen via AutoLink.

Дисплей мен басқару элементтері

The 7-inch QLED glare-suppressing touchscreen provides clear visibility even in bright daylight. The intuitive Linux system allows quick access to key features.

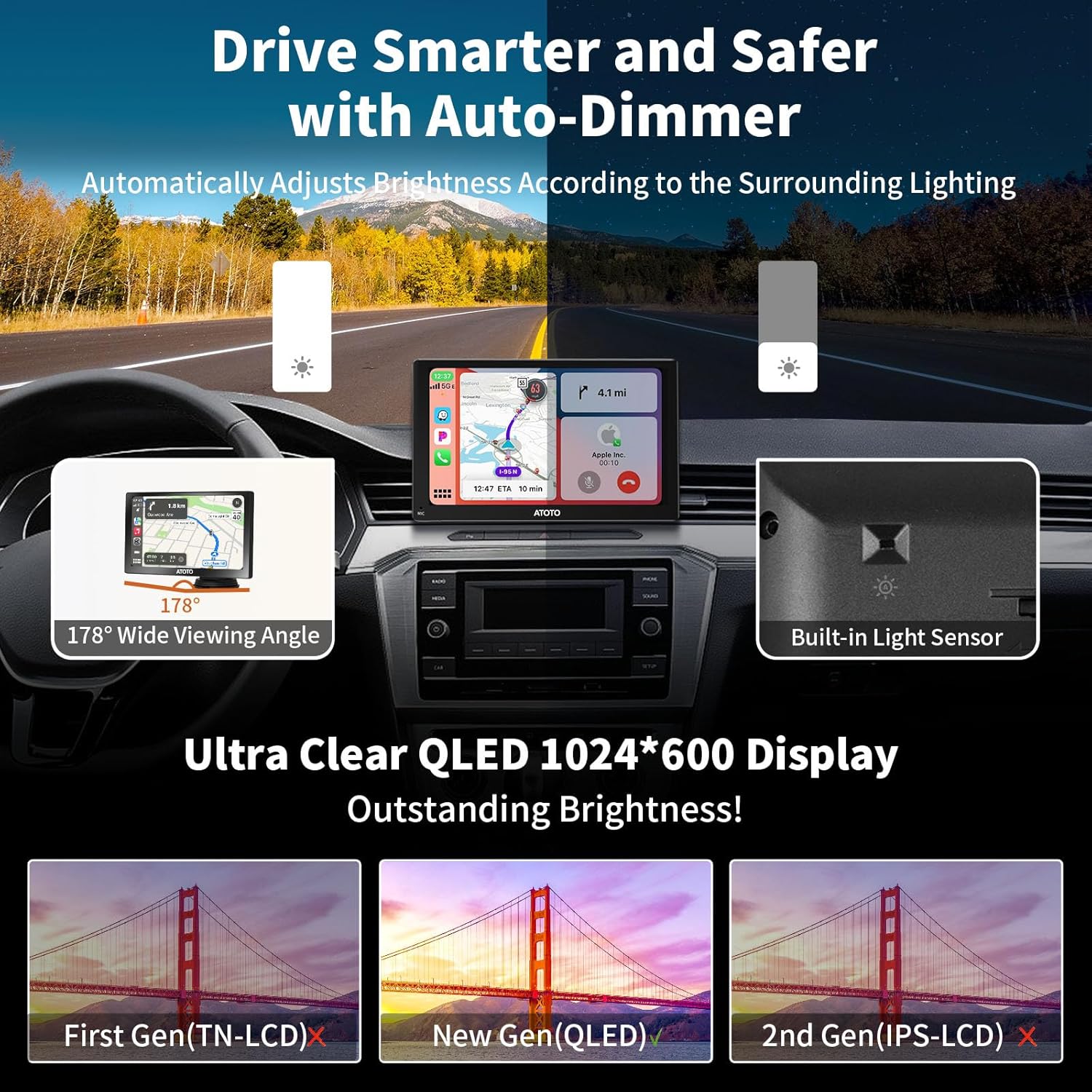

ATOTO P807PR with Auto-Dimmer and QLED display
Image: The ATOTO P807PR display highlighting the Auto-Dimmer feature and the QLED screen's clarity, comparing it to older display technologies.
ATOTO P8 Anti-Glare and Wide Viewбұрыш
Image: Comparison showing the ATOTO P8's anti-glare screen and wide 178-degree viewing angle compared to other devices, ensuring clear visibility.
ATOTO P8 Capacitive Touchscreen
Image: A hand interacting with the responsive capacitive touchscreen of the ATOTO P8, demonstrating its ease of use.

Auto-Dimmer Function

The built-in light sensor automatically adjusts the screen brightness based on ambient light conditions, such as entering or exiting a tunnel, for safer driving.

ATOTO P8 Auto-Dimming feature
Image: Visual representation of the ATOTO P8's auto-dimming feature, showing how screen brightness adjusts automatically in different lighting conditions (day, dusk, night).

Қашықтан басқару құралы

The included AC-44F6 wireless remote control provides convenient access to functions like volume adjustment, track skipping, and voice assistant activation, keeping your hands on the steering wheel.

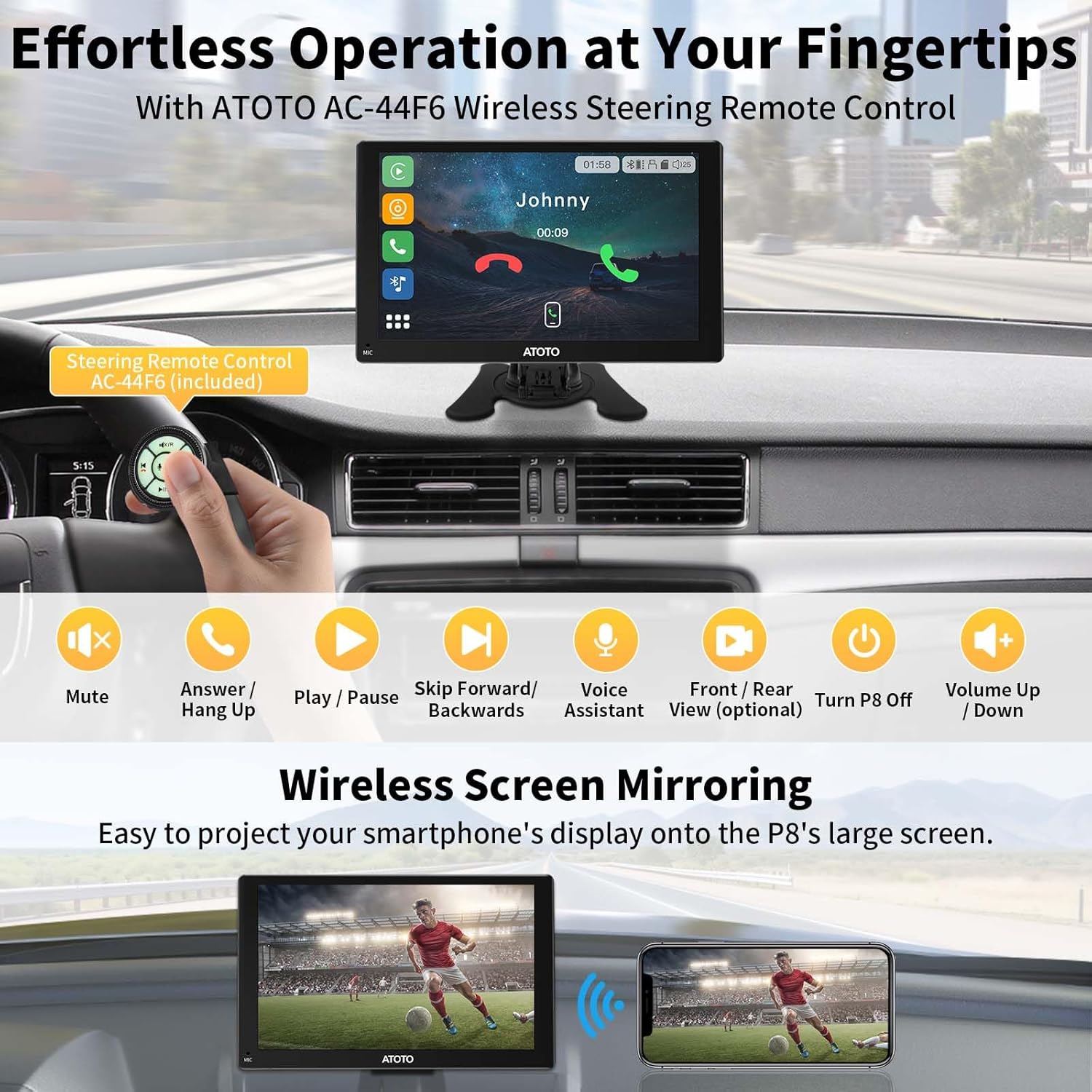

ATOTO P807PR with AC-44F6 wireless remote control
Image: The ATOTO P807PR display alongside the AC-44F6 wireless steering remote control, illustrating its use for effortless operation.
AC-44F6 wireless remote control in use
Image: A hand operating the AC-44F6 wireless steering remote control, which features luminous buttons for visibility in low light, while driving at night.

Dual Camera System (DVR)

The P807PR features HD 1080P dual cameras with a 150° viewing angle for both front and rear views. WDR (Wide Dynamic Range) and strong light suppression ensure clear recordings, even against high beams.

ATOTO P807PR HD 1080P Dual Cameras with WDR
Image: The ATOTO P807PR display showing views from both front and rear HD 1080P cameras, highlighting features like WDR, parking monitor, G-sensor, and instant playback.
ATOTO P8 HD 1080P recording features
Image: Icons representing the ATOTO P8's HD 1080P dual recording camera features, including Parking Monitor, Real-time Recording, Anti-Glare, Night Vision, WDR, Loop Recording, G-Sensor, Outage-Proof, Auto Start, and IP67 Waterproof.
ATOTO P8 Anti-Glare and Superior Night Vision
Image: Demonstrates the anti-glare and superior night vision capabilities of the ATOTO P8's cameras, showing clear views in challenging light conditions.

G-Sensor & Parking Monitor

The built-in G-sensor detects unusual gravitational changes (e.g., sudden impact) and automatically saves video footage to the emergency list. The Parking Monitor (requires additional accessories) provides 24/7 surveillance, recording incidents while parked.

ATOTO P8 built-in Gravity sensor
Image: The ATOTO P8 display showing the G-sensor in action, automatically locking crucial footage during an incident and saving it on the emergency list.
ATOTO P8 Parking Monitor feature
Image: The ATOTO P8 demonstrating the Parking Monitor feature, showing 24-hour surveillance of the vehicle. Note: Requires ATOTO AC-P8AC12 Fast Boot Connector, sold separately.
ATOTO P8 IP67 Waterproof Rear View Камера
Image: The ATOTO P8 displaying real-time front and rear views with parking guidelines, and a close-up of the IP67 waterproof rear view камера.

Бейне ойнату

Video: This video demonstrates the features of the ATOTO P8 Portable Car Stereo, including wireless CarPlay and Android Auto, auto-dimmer, quick charge, remote control, and front/rear camera input with G-sensor and parking monitor functions.

Техникалық қызмет көрсету

Бағдарламалық құрал жаңартулары

The ATOTO P807PR supports Over-The-Air (OTA) updates to ensure your device always has the latest features and improvements. Follow the on-screen prompts or refer to the ATOTO support webжаңарту нұсқауларына арналған сайт.

ATOTO P8 Over the Air (OTA) update process
Image: The ATOTO P8 display showing the Over-The-Air (OTA) update interface, with a smartphone scanning a QR code for the update process.

Құрылғыны тазалау

Use a soft, dry cloth to clean the screen and exterior of the device. Avoid using abrasive cleaners or solvents that may damage the QLED display or finish.

Ақаулықтарды жою

If you encounter issues with your ATOTO P807PR, refer to the following common solutions:

  • Қуат жоқ: Ensure the power cable is securely connected to the cigarette lighter socket and the vehicle's ignition is on. Check the vehicle's fuse for the cigarette lighter.
  • Аудио шығысы жоқ: Verify the selected audio output mode (Bluetooth, FM, AUX, or built-in speaker) is correctly configured and connected to your car's stereo system. Adjust volume levels on both the P8 and your car stereo.
  • CarPlay/Android Auto Connectivity Issues: Ensure your smartphone's Bluetooth and Wi-Fi are enabled and correctly paired with the P8. Restart both the P8 and your phone if connection fails.
  • Screen Glare: The QLED display is designed to suppress glare. Ensure the auto-dimmer function is active. If glare persists, adjust the unit's angle or consider a sunshade.
  • Camera Not Recording/Saving: Check if an SD card is inserted and properly formatted. Ensure the G-sensor sensitivity is set appropriately. For Parking Monitor, confirm the ATOTO AC-P8AC12 Fast Boot Connector is installed (sold separately).

For further assistance, please contact ATOTO customer support.

Техникалық сипаттамалар

ЕрекшелікМәлімет
БрендATOTO
Үлгі нөміріP807PR (PUS09B74)
Экран өлшемі7 дюйм
Дисплей түріQLED
Ажыратымдылық800 x 480
Сенсорлық экран түріСыйымдылық
Операциялық жүйеLinux
Қосылу технологиясыBluetooth, USB, Wi-Fi
Арнайы мүмкіндіктер1080P Dual Camera, Anti-Glare, Auto-Dimmer, Incident Detection, Wireless CarPlay and Android Auto
Дыбысты шығару режиміStereo (Bluetooth, FM Transmitter, AUX, Built-in Speaker)
Монтаждау түріБақылау тақтасы
Қолдау көрсетілетін спутниктік навигация жүйесіGPS (via phone apps)
Жад сақтау сыйымдылығы128 GB (Max. SD Card)
Бақылау әдісіҚолданба, қашықтан басқару пульті, түрту, дауыс
Үйлесімді құрылғыларAndroid phone, iPhone
Көлік құралдарының қызмет түріАвтокөлік
Нәр беруші12В/24В

Кепілдік туралы ақпарат

The ATOTO P807PR comes with a 12-month warranty by default. You can register your product to receive an additional 180 days of extended warranty coverage.

ATOTO 18-Month Product Care
Image: Graphic illustrating the 18-month product care, combining the standard 365 days (12 months) with an additional 180 days (6 months) upon registration.

Тұтынушыларды қолдау

For technical assistance, warranty claims, or any product-related inquiries, please contact ATOTO customer support. Our team is available to provide responsive and responsible support.

Электрондық пошта: support@myatoto.com
