ZINUS Easy to Assemble SmartBase Bed Frame

1. Кіріспе

Сатып алғаныңыз үшін рахметasing the ZINUS Easy to Assemble SmartBase Bed Frame. This manual provides essential information for the safe and correct assembly, use, and maintenance of your new bed frame. Please read these instructions carefully before assembly and retain them for future reference.

2. Қауіпсіздік ескертулері мен сақтық шаралары

• Матрастың қалыңдығы: To ensure long-term durability and proper support, always use a mattress with a thickness of 15 cm (6 inches) or more.
• Avoid Futons: Do not use a futon directly on the bed frame. Direct pressure on the bed slats from a futon may cause damage to the frame.
• Секіруден аулақ болыңыз: Do not jump on the bed frame. Concentrated weight on a single point can cause structural damage and potential injury.
• Құрастыру персоналы: Assembly should be performed by two or more adults to ensure safety and ease of construction.
• Жиналу аймағы: Ensure sufficient space for assembly. Protect your floor by placing a mat or blanket underneath the assembly area.
• Мақсатты пайдалану: This product is designed for household furniture use only. Do not use it for any purpose other than its original intent, as this may lead to unexpected accidents or injuries.

3. Пакет мазмұны

Before beginning assembly, please verify that all parts are present and undamaged. If any parts are missing or damaged, please contact Zinus Support.

• Steel Frame Components (various parts labeled A, C, D, E, F, G, H)
• Hardware Bag (screws, washers, nuts, Allen wrench, spanner)
• Plastic Covers (B)
• Нұсқаулық

Image: Components of the ZINUS Easy to Assemble SmartBase Bed Frame, including the steel frame, hardware, and instruction manual, shown next to its compact packaging.

4. Құрастыру нұсқаулары

Assembly is designed to be simple and typically takes 15-30 minutes with two adults. Tools are included.

1. Assemble the Foot Frame:
   • Insert frame C into frame A.
   • Secure with 20mm screws (part 2). Маңызды: Loosely tighten screws by hand until all frames are in place.

   Video: Demonstrates the assembly process for a steel bed frame, including connecting frame components and tightening screws. This video is provided by a seller and shows general assembly steps.
2. Assemble the Side Frames:
   • Join frames E and F.
   • Secure the joint with 16mm screws (part 1). Маңызды: Ensure the nuts are facing outwards to prevent interference with the mattress.
3. Connect Foot Frame and Side Frames:
   • Use 30mm screws (part 3), gasket (part 5), and nut (part 4) to connect the foot frame and side frames.
4. Install Center Legs:
   • Attach center leg G to the frame using 16mm screws (part 1).
   • For easier access to screw holes, it is recommended to lie down and visually align the parts.
5. Install Support Frame:
   • Attach support frame D using 30mm screws (part 3).
6. Тақталарды орнату:
   • Insert the 10 slats (part H) into the designated slots. Ensure the cutouts on the slats face downwards.
   • Place plastic covers (part B) over the holes on both sides of the slats.


   Сурет: жақыннан views of the bed frame assembly, showing how to connect frame parts, tighten screws with the included tool, and insert slats.
7. Соңғы қатайту:
   • Once all components are loosely assembled, go back and securely tighten all screws and nuts using the provided tools.

5. Пайдалану нұсқаулары

The ZINUS SmartBase Bed Frame is designed for straightforward use. Once assembled, simply place your compatible mattress (15cm or thicker) on the steel slats. The frame provides stable support and allows for ampтөсек астындағы қойма.

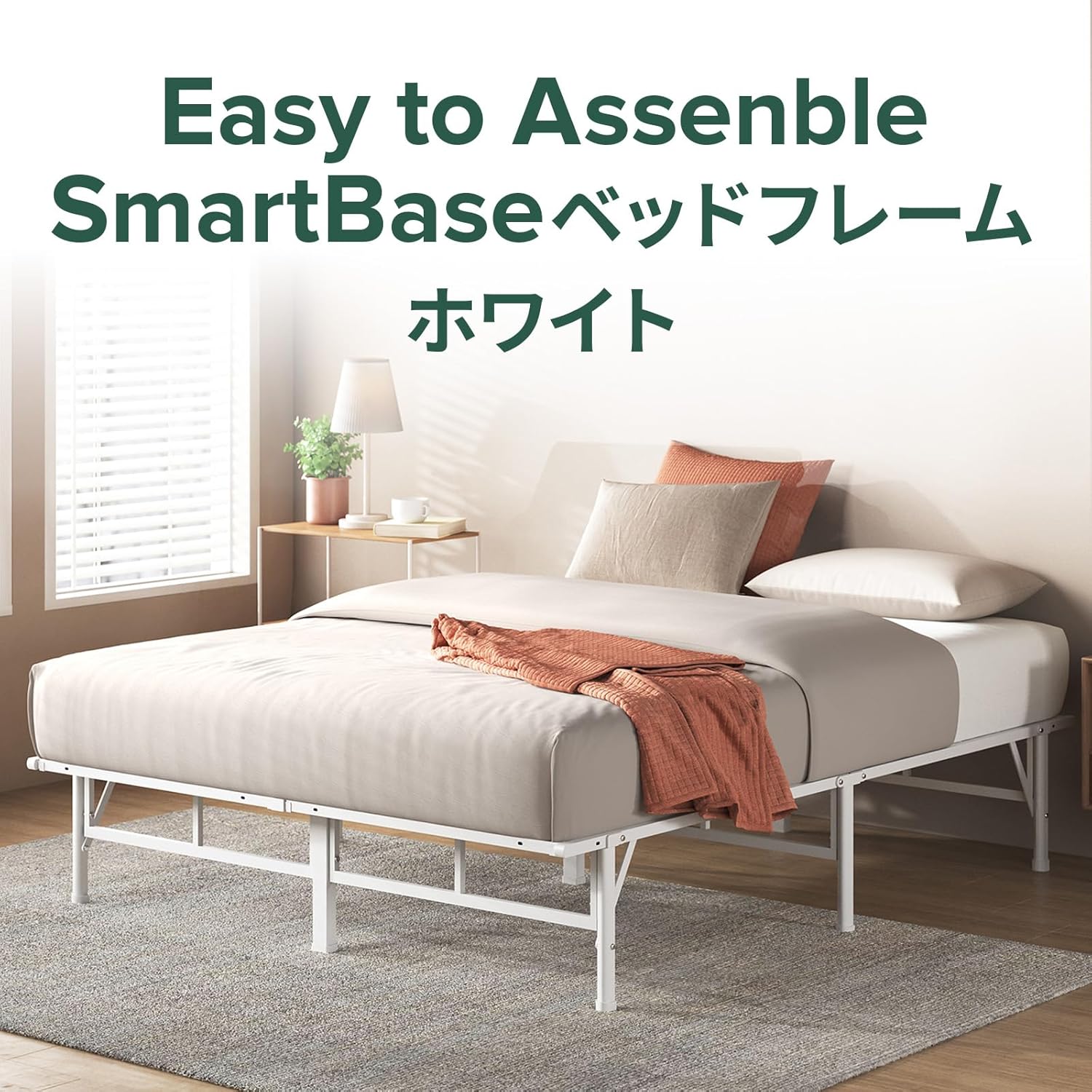

Image: The ZINUS Easy to Assemble SmartBase Bed Frame in white, shown with a mattress and bedding in a bedroom setting.

Image: The ZINUS Easy to Assemble SmartBase Bed Frame highlighting the spacious 33.1cm under-bed storage area, suitable for various items.

6. Техникалық қызмет көрсету

To maintain your ZINUS bed frame in optimal condition:

• Тазалау: Wipe clean with a dry cloth. Avoid harsh chemicals that may damage the finish.
• Тұрақты тексерулер: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent squeaking.
• Желдету: The steel slatted design promotes air circulation. Ensure the area around and under the bed is kept clean and well-ventilated to prevent moisture buildup.

7. Ақаулықтарды жою

Төсек жақтауында қандай да бір мәселелер туындаса, келесі жалпы шешімдерді қараңыз:

• Сықырлаған дыбыстар: Ensure all screws and bolts are securely tightened. Loose connections are a common cause of squeaking.
• Тұрақсыздық: Verify that all frame components are correctly assembled according to the instructions and that all fasteners are fully tightened.
• Матрастың салбырауы: Confirm that your mattress meets the recommended thickness of 15cm or more. Ensure slats are properly seated and evenly distributed.

If problems persist, please contact Zinus Support for assistance.

8. Техникалық сипаттамалар

Image: Detailed dimensions of the ZINUS Easy to Assemble SmartBase Bed Frame, showing length (195cm), width (97cm), and height (36cm), with 33cm under-bed clearance and a weight capacity of approximately 120kg.

9. Кепілдік және қолдау

This ZINUS product is covered by a 5-year warranty. For warranty claims, product support, or any inquiries, please contact Zinus Support.

ZINUS Support Center: 0120-760-570

Image: A badge indicating a 5-year warranty and quality assurance for ZINUS products.
