BlackZon 540180 Smyter DB Body User Manual

1. Кіріспе

This manual provides essential instructions for the proper installation, use, and maintenance of your BlackZon 540180 Smyter DB Body. Please read this manual thoroughly before installation and retain it for future reference. Adhering to these guidelines will help ensure the longevity and optimal performance of your product.

2. Өнім аяқталдыview

The BlackZon 540180 Smyter DB Body is a replacement or upgrade body designed for compatible remote-control (RC) vehicles. It is manufactured by HPI and is intended for use by kids, offering a durable and visually appealing exterior for your RC model. This body is designed for manual operation, meaning it is a static component that requires manual installation onto an RC chassis.

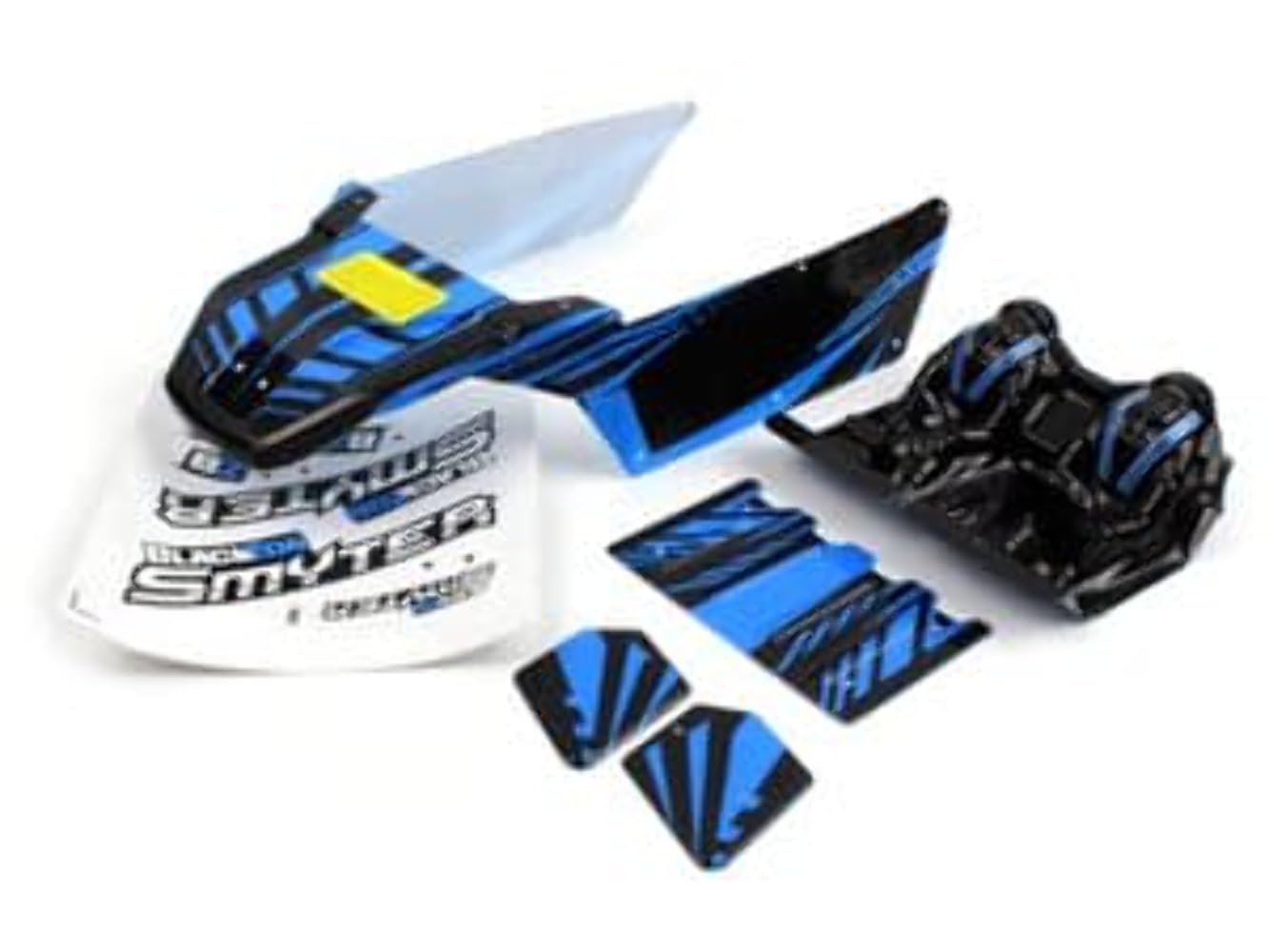

2.1-сурет: The BlackZon 540180 Smyter DB Body, featuring a black and blue color scheme. This image displays the body's design and contours, ready for installation on a compatible RC vehicle chassis.

3. Орнату және орнату

Before installing the Smyter DB Body, ensure your RC vehicle's chassis is clean and free from debris. This body is designed to fit specific BlackZon Smyter DB chassis models. Refer to your RC vehicle's chassis manual for specific body mounting instructions.

1. Шассиді дайындаңыз: Ensure the body posts on your RC chassis are correctly positioned and free from obstructions.
2. Position the Body: Carefully align the Smyter DB Body over the chassis, ensuring the body posts pass through the designated holes in the body.
3. Secure the Body: Use body clips (not included with the body, typically supplied with the chassis) to secure the body to the posts. Ensure all four corners are firmly attached to prevent the body from detaching during operation.
4. Тазалықты тексеру: Verify that the body does not interfere with the movement of wheels, suspension components, or steering mechanisms. Adjust body post height if necessary (if your chassis allows).

Ескерту: Improper installation can lead to damage to the body or affect the performance of your RC vehicle.

4. Жұмысты қарастыру

While the body itself does not "operate," its presence is integral to the RC vehicle's function and protection. Consider the following during vehicle operation:

• Әсерден қорғау: The body provides a protective shell for the internal components of your RC vehicle. While durable, excessive impacts can cause damage.
• Аэродинамика: The design of the body contributes to the vehicle's aerodynamics. Ensure it is securely fastened to maintain stability at speed.
• Желдету: Some RC chassis require airflow for cooling electronics. Ensure the body's design does not excessively restrict necessary ventilation.

5. Техникалық қызмет көрсету

Regular maintenance will extend the life and appearance of your Smyter DB Body.

• Тазалау: After each use, wipe down the body with a soft, damp cloth to remove dirt, dust, and debris. For stubborn grime, a mild soap solution can be used, followed by rinsing and thorough drying. Avoid harsh chemicals or abrasive cleaners, as these can damage the paint or material.
• Тексеру: Periodically inspect the body for cracks, tears, or mounting hole wear. Small cracks can sometimes be repaired with specialized RC body repair tape or adhesive to prevent them from spreading.
• Сақтау орны: Store the body in a cool, dry place away from direct sunlight and extreme temperatures when not in use. Avoid placing heavy objects on top of the body to prevent deformation.

6. Ақаулықтарды жою

This section addresses common issues related to the Smyter DB Body.

• Body Detaches During Use:
  • Ensure body clips are fully inserted and secure.
  • Check if body post holes are worn; if so, consider reinforcing them or replacing body posts.
  • Verify the body is correctly aligned on the posts.
• Body Rubs Against Wheels/Tires:
  • Confirm the body is seated correctly on the posts.
  • If your chassis allows, adjust the height of the body posts to raise the body.
  • Check for bent suspension components that might alter wheel position.
• Cracks or Damage to Body:
  • Minor cracks can be repaired with polycarbonate-specific repair tape or adhesive.
  • For significant damage, replacement of the body may be necessary.
  • Review driving habits to minimize impacts.

7. Техникалық сипаттамалар

8. Кепілдік және қолдау

For information regarding warranty coverage, technical support, or replacement parts, please contact the manufacturer, HPI, or your authorized BlackZon dealer. Keep your proof of purchase for warranty claims.

Жауапкершіліктен бас тарту: The manufacturer and distributor are not responsible for damages or injuries resulting from improper installation, modification, or misuse of this product.
