Кіріспе
This instruction manual provides detailed guidance for the installation, operation, and maintenance of your EMKE Model S03R1036 Shower Head. Please read this manual thoroughly before use to ensure proper function and longevity of your product. This shower head features a powerful filtration system, 6 adjustable spray settings, and a water-saving high-pressure design.
Өнімнің құрамдас бөліктері
The EMKE Shower Head kit includes the following components:
- 1 x EMKE Shower Head (Model S03R1036)
- 1 x 1.5-meter Stainless Steel Shower Hose (1/2 inch connection)
- 1 x Adjustable Wall Mount Bracket
- 2 x Carbon Fiber Replacement Filters (one pre-installed in the shower head)

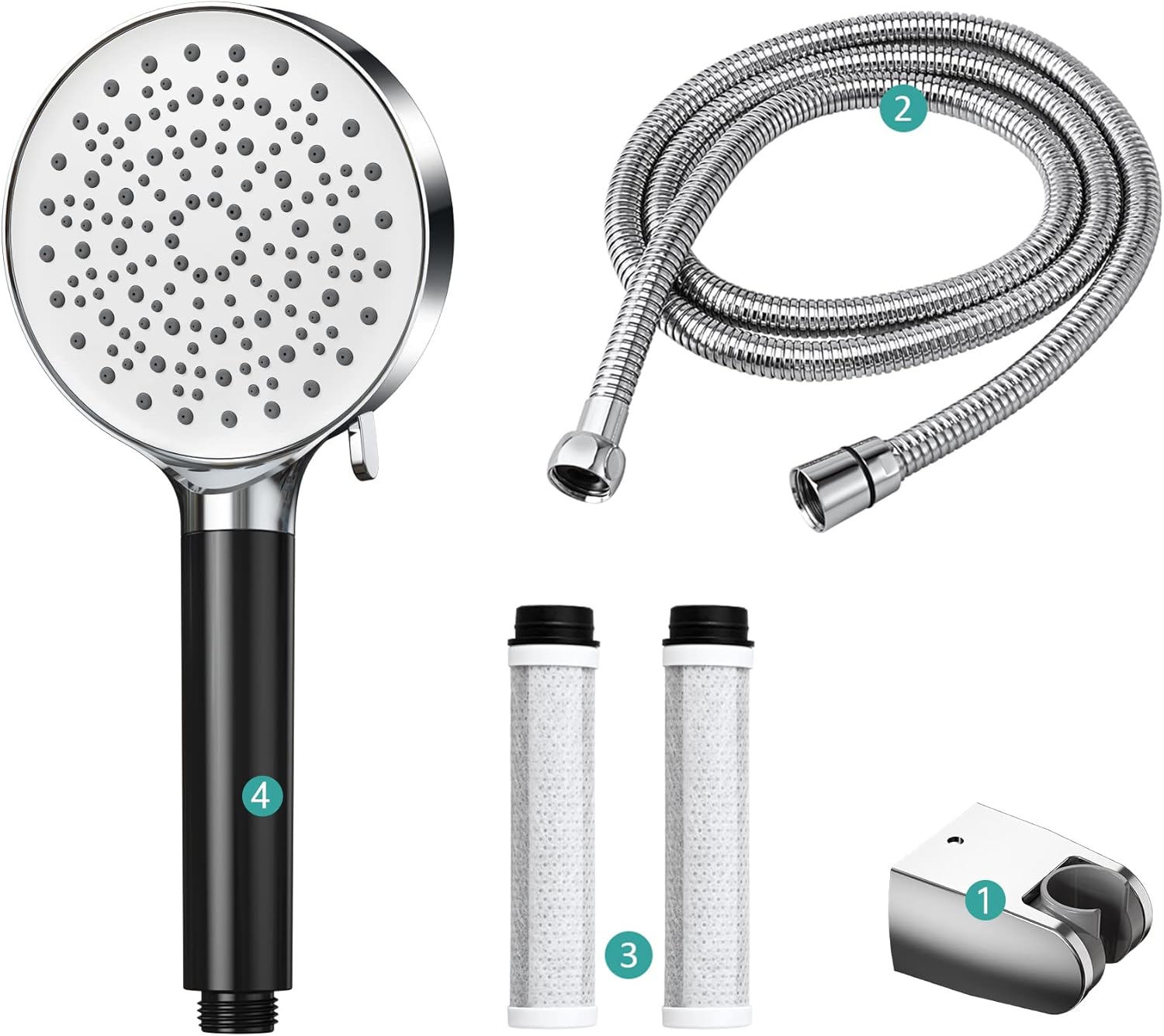

Image: Product dimensions and package contents, showing the shower head, 1.5m hose, wall bracket, and two carbon filters.
Орнату нұсқаулары
The EMKE shower head is designed for easy, tool-free installation and is compatible with most standard 1/2 inch shower hoses.
- Компоненттерді қаптамадан шығару: Қаптамадағы барлық заттарды мұқият алып тастаңыз.
- Сумен жабдықтауды өшіру: Locate and turn off the main water supply to your shower.
- Remove Old Shower Head (if applicable): Unscrew your existing shower head and hose from the water outlet. Clean any residue from the threads.
- Душқа арналған шлангты бекітіңіз: Connect the 1.5-meter stainless steel shower hose to your shower's water outlet. Hand-tighten to ensure a secure, leak-free connection. If necessary, use a wrench gently, being careful not to overtighten.
- Душ басын бекіту: Screw the EMKE shower head onto the other end of the shower hose. Hand-tighten firmly.
- Қабырғалық аспа орнату: Choose a suitable location on your shower wall for the adjustable bracket. Secure it using appropriate fasteners (not included, as wall types vary).
- Place Shower Head: Insert the shower head into the wall mount bracket.
- Ағып кетуді тексеріңіз: Slowly turn the water supply back on and check all connections for any leaks. If leaks occur, tighten connections slightly.
Пайдалану нұсқаулары
Your EMKE shower head offers a versatile showering experience with its unique features:
6 Spray параметрлері
The shower head features 6 distinct spray types. You can easily switch between these settings with a single hand using the push-button switch located on the shower head. The selected spray mode will remain active even after turning off the water.

Image: Visual representation of 6 different spray patterns, including Rain, Boost, and Super-Boost modes.

Image: Demonstrates the convenient one-hand operation for selecting spray modes.
High-Pressure Water Saving
The shower head's micro-nozzles (0.5 mm) create smaller, denser water outlets, ensuring a strong water flow and stable water pressure while conserving water. This design allows for an enjoyable shower experience with efficient water usage.

Image: Comparison showing the EMKE shower head's water-saving capabilities and uniform water flow.
120mm Shower Head
The EMKE shower head features a larger 120mm spray surface, providing broader water coverage compared to conventional shower heads for a more immersive showering experience.

Image: Highlights the 120mm enlarged water outlet plate for enhanced coverage.
Powerful Filtration System
The shower head incorporates a newly upgraded carbon fiber filter. This three-layer filtration system effectively reduces chlorine, heavy metals, rust, odors, and disinfection by-products in the water, contributing to a healthier showering experience.

Image: Diagram showing the three-layer filter screen with cotton fiber and activated carbon layers for comprehensive water purification.
Техникалық қызмет көрсету
Regular maintenance ensures optimal performance and extends the life of your EMKE shower head.
Саңылауларды тазарту
The silicone nozzles are designed to prevent limescale buildup. To clean, simply wipe the nozzles gently with a towel or your finger. This easy cleaning method helps maintain consistent water flow and prevents blockages.

Image: Close-up of the shower head highlighting the silicone nozzles and their easy-to-clean design.
Сүзгіні ауыстыру
The carbon fiber filter should be replaced periodically depending on water quality and usage. Your kit includes two filters (one pre-installed, one spare). To replace the filter:
- Душ басын шлангтан бұрап алыңыз.
- Carefully remove the old filter cartridge from the handle.
- Insert a new carbon fiber filter cartridge into the handle.
- Reattach the shower head to the hose, ensuring a tight seal.
Ақаулықтарды жою
| Мәселе | Ықтимал себебі | Шешім |
|---|---|---|
| Судың төмен қысымы | Clogged filter, kinked hose, or clogged nozzles. | Check and replace the filter if necessary. Straighten the hose. Clean the silicone nozzles. |
| Қосылымдардан су ағып кетуі | Бос қосылымдар немесе жоқ/зақымдалған шайбалар. | Ensure all connections are hand-tightened. Check that rubber washers are correctly seated. |
| Сәйкес емес бүріккіш үлгісі | Бітелген саптамалар. | Gently wipe the silicone nozzles to remove any mineral deposits. |
Техникалық сипаттамалар
- Модель нөмірі: S03R1036
- Өнім өлшемдері (L x W x H): 26 x 12 x 12.7 см
- Салмағы: 638 грамм
- Бренд: EMKE
- Стиль: Қазіргі заманғы
- Пішін: Дөңгелек
- Материал: Акрилонитрил бутадиен стироны (ABS)
- Аяқтау түрі: Chrome
- Орнату түрі: Қабырғаға аспа
- Түсі: Chrome
- Бүрку параметрлері: 6 types (e.g., Rain, Massage, Boost)
- Түтік ұзындығы: 1.5 метр
- Қосылатын компоненттер: Shower head, hose, wall mount bracket, replacement filters
- Шығу елі: Қытай
Кепілдік және қолдау
EMKE is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, if you have any questions or require assistance with your EMKE shower head, please do not hesitate to contact our customer support team. We aim to respond within 24 hours and provide a satisfactory solution.
Please refer to your purchase documentation or the EMKE official webең соңғы кепілдік ақпараты мен байланыс мәліметтерін алу үшін сайтқа кіріңіз.
