1. Кіріспе
Thank you for choosing the HoldPeak HP-816B Digital Anemometer. This device is designed for precise measurement of wind speed, air flow velocity, and temperature, including wind chill indication. This manual provides detailed instructions for proper setup, operation, and maintenance to ensure optimal performance and longevity of your anemometer.
Please read this manual thoroughly before using the device and keep it for future reference.
2. Өнім аяқталдыview
The HoldPeak HP-816B is a compact and versatile digital anemometer suitable for various applications, from outdoor activities to electrical equipment testing.
Негізгі ерекшеліктері:
- Нақты өлшеу: Measures wind speed from 0.3 to 30 m/s (±5% rdg) and temperature from -10 to 45°C (±2°C), with real-time wind chill indication.
- Multi-Unit Display: Supports wind speed units (m/s, Ft/min, knots, Km/h, Mph) and temperature units (°C/°F).
- Деректер режимдері: Displays maximum, average, and current wind speed.
- Артқы жарықтандырылған СКД: Features a crystal display with an automatic backlight function for visibility in low-light conditions.
- Автоматты түрде өшіру: 10 минут әрекетсіздіктен кейін автоматты түрде өшу арқылы батареяның қызмет ету мерзімін үнемдейді.
- Портативті дизайн: Lightweight and compact, designed for single-hand operation and easy portability.
Figure 2.1: HoldPeak HP-816B Anemometer with basic functions highlighted.
3. Құрамдас бөліктер
The HoldPeak HP-816B Digital Anemometer package typically includes:
- HoldPeak HP-816B Digital Anemometer
- CR2032 3.0V Battery (pre-installed or included separately)
- Бау
- Пайдаланушы нұсқаулығы

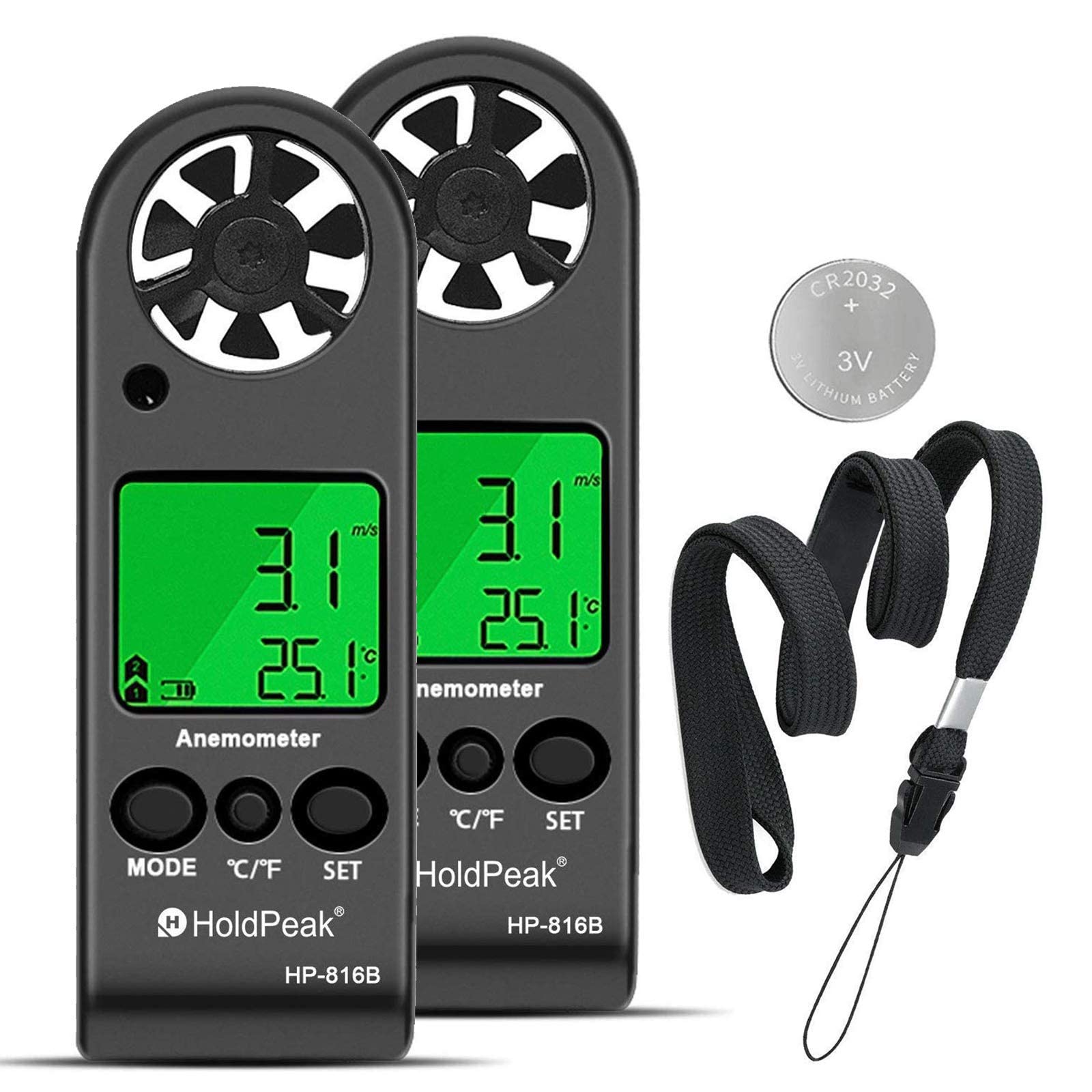

Figure 3.1: The HoldPeak HP-816B Digital Anemometer and its included accessories.
4. Орнату
4.1 Батареяны орнату
The device uses one CR2032 3.0V battery. Follow these steps to install or replace the battery:
- Locate the battery cover on the back of the anemometer.
- Use a coin to rotate the battery cover counter-clockwise to the "OPEN" position.
- Қақпақты шешіп, CR2032 батареясын оң (+) жағын жоғары қаратып салыңыз.
- Replace the battery cover and rotate it clockwise to the "CLOSE" position to secure it.
Figure 4.1: Illustrated guide for battery replacement.
4.2 Бауға арналған бекітпе
To prevent accidental drops and for convenient carrying, attach the included lanyard:
- Locate the lanyard hole at the bottom of the anemometer.
- Thread the thin loop of the lanyard through the hole.
- Pass the main strap of the lanyard through the loop and pull it tight to secure.
Video 4.1: Demonstration of battery installation and lanyard attachment.
5. Пайдалану нұсқаулары
5.1 Қуатты қосу/өшіру
- Қуат қосулы: Long press the "MODE" button until the device turns on and "m/s" starts to flash.
- Қуат көзін өшіру: Long press the "SET" button to turn off the device. The device also features an automatic power-off function after 10 minutes of inactivity.
5.2 Unit Selection (Wind Speed)
To change the wind speed unit:
- With the device powered on, short press the "MODE" button repeatedly.
- Cycle through the available units: m/s, km/h, ft/min, knots, mph.
- Таңдалған бірлік экранда көрсетіледі.
5.3 Temperature Unit Switch (°C/°F)
Цельсий мен Фаренгейт арасында ауысу үшін:
- Short press the "°C/°F" button to toggle between Celsius (°C) and Fahrenheit (°F).
5.4 Артқы жарық функциясы
The device is equipped with a backlight for use in dark environments:
- Press any key to activate the LCD backlight for 5 seconds.
Figure 5.1: Anemometer display with backlight activated in a dark setting.
5.5 Measurement Modes (MAX/AVG/CURRENT)
The anemometer can display maximum, average, and current wind speed. Use the "MODE" button to cycle through these display options after the device is powered on and the unit is selected.
5.2-сурет: Егжей-тегжейлі view of the anemometer's display and control buttons (MODE, °C/°F, SET).
6. Техникалық сипаттамалар
Below are the technical specifications for the HoldPeak HP-816B Digital Anemometer:
| Ерекшелік | Техникалық сипаттама |
|---|---|
| Бренд | HoldPeak |
| Үлгі нөмірі | HP-816B |
| Материал | Акрилонитрил бутадиен стироны (ABS) |
| Элемент өлшемдері (L x W x H) | 11.3 x 4 x 1.5 см |
| Элемент салмағы | 80 грамм |
| Батарея Түрі | CR2032 3.0V |
| Термометр | NTC термометрі |
| Температура диапазоны | -10°C - 45°C (14°F - 113°F) |
| Жұмыс температурасы | ≤ 90% RH |
| Сақтау температурасы | -40°C – 60°C (-40°F – 140°F) |
| Ағымдағы тұтыну | Шамамен 3мА |
| Жел жылдамдығының диапазоны (м/с) | 0.3 - 30 m/s (Resolution: 0.1, Threshold: 0.1, Accuracy: ±5%) |
| Wind Speed Range (Ft/min) | 0 - 5860 Ft/min (Resolution: 19, Threshold: 39, Accuracy: ±5%) |
| Жел жылдамдығының диапазоны (түйіндер) | 0 - 55 Knots (Resolution: 0.2, Threshold: 0.3, Accuracy: ±5%) |
| Wind Speed Range (Km/h) | 0 - 90 Km/h (Resolution: 0.3, Threshold: 0.3, Accuracy: ±5%) |
| Wind Speed Range (Mph) | 0 - 65 Mph (Resolution: 0.2, Threshold: 0.2, Accuracy: ±5%) |
Figure 6.1: Detailed specifications and dimensions of the anemometer.
7. Техникалық қызмет көрсету
7.1 Тазалау
To maintain accuracy and extend the life of your anemometer:
- Құрылғыны жұмсақ, құрғақ шүберекпен сүртіңіз.
- Абразивті тазартқыштарды немесе еріткіштерді қолданбаңыз.
- Ensure the fan blades are free from dust and debris for accurate wind speed readings.
7.2 Батареяны ауыстыру
Refer to Section 4.1 for detailed instructions on how to replace the battery. Replace the battery when the low battery indicator appears on the display to ensure continuous and accurate operation.
7.3 Сақтау
When not in use for extended periods, store the anemometer in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for a long time, it is recommended to remove the battery to prevent leakage.
8. Ақаулықтарды жою
If you encounter issues with your HoldPeak HP-816B Anemometer, refer to the following common problems and solutions:
- Құрылғы қосылмайды: Check if the battery is correctly installed and has sufficient charge. Replace the battery if necessary (refer to Section 4.1).
- Inaccurate wind speed readings: Ensure the fan blades are clean and unobstructed. Make sure the device is held in an open area, facing the wind direction.
- Дисплей күңгірт немесе жыпылықтайды: The battery might be low. Replace the battery.
- Артқы жарық жұмыс істемейді: Press any button to activate the backlight. If it still doesn't work, check the battery.
If the problem persists after attempting these solutions, please contact HoldPeak customer support for further assistance.
9. Қолдану сценарийлері
The HoldPeak HP-816B Digital Anemometer is a versatile tool suitable for a wide range of applications:
- Ашық ауадағы іс-шаралар: Ideal for shooting, sailing, mountaineering, kite flying, drone operation, and other sports where wind conditions are crucial.
- HVAC жүйелері: Useful for testing and balancing heating, ventilation, and air conditioning equipment.
- Қоршаған ортаның мониторингі: Can be used for air flow research and aerial surveys.
- Өнеркәсіптік пайдалану: Suitable for various industrial applications requiring wind speed and temperature monitoring.
9.1 -сурет: Мысалыamples of the anemometer's diverse application scenarios.
10. Кепілдік және қолдау
HoldPeak provides a 365-day warranty for the HP-816B Digital Anemometer, ensuring quality and reliability. Additionally, lifetime technical support is available to assist you with any questions or issues you may encounter.
For technical assistance or warranty claims, please contact HoldPeak customer service through their official channels or the retailer where the product was purchased.
