DROK DC Buck Converter Model 200310AFA Instruction Manual

1. Өнім аяқталдыview

The DROK DC Buck Converter is a high-performance, digitally controlled step-down power module designed to convert a higher DC input voltage to a lower, adjustable DC output voltage and current. It features an integrated LED display for real-time monitoring of voltage, current, capacity, and time. This module is equipped with advanced microprocessor control for precise adjustments and includes a cooling fan and heat sink for efficient thermal management.

1-сурет: Жоғарғы view of the DROK DC Buck Converter module.

2. Қауіпсіздік нұсқаулары

Please read and understand these safety instructions before operating the device. Failure to follow these instructions may result in electric shock, fire, or damage to the product.

• Кіріс көлеміtage: Кіріс көлемін қамтамасыз етіңізtage is within the specified range of DC 10V-65V. Exceeding this range can damage the module.
• Шығыс жүктемесі: Do not exceed the maximum output current of 12A or maximum output power of 720W.
• Полярлық: Always observe correct input and output polarity. Incorrect connections can cause severe damage.
• Желдету: Ensure adequate ventilation around the module, especially the cooling fan and heat sink, to prevent overheating.
• Қоршаған орта: Avoid operating the module in environments with high humidity, dust, or extreme temperatures.
• Орнату: Орнату және сымдарды тарту жұмыстарын тек білікті мамандар ғана жүргізуі керек.
• Оқшаулау: Ensure the module is properly isolated from other components to prevent accidental short circuits.

3. Өнім компоненттері және диаграммасы

Familiarize yourself with the main components of the DROK DC Buck Converter:

Image 2: Labeled diagram of the DROK DC Buck Converter.

• Input + / Input -: Terminals for connecting the DC power source (10V-65V).
• Output + / Output -: Terminals for connecting the load.
• Дисплей интерфейсі: LED screen showing real-time voltage, current, capacity, and time.
• Салқындату желдеткіші: Activates automatically to dissipate heat during operation.
• Operation Key Buttons: Used for setting output voltage, ток және басқа параметрлер.
• Working Status Indicators: LEDs for OUT (Output active), CV (Constant Voltage mode), and CC (Constant Current mode).

4. Техникалық сипаттамалар

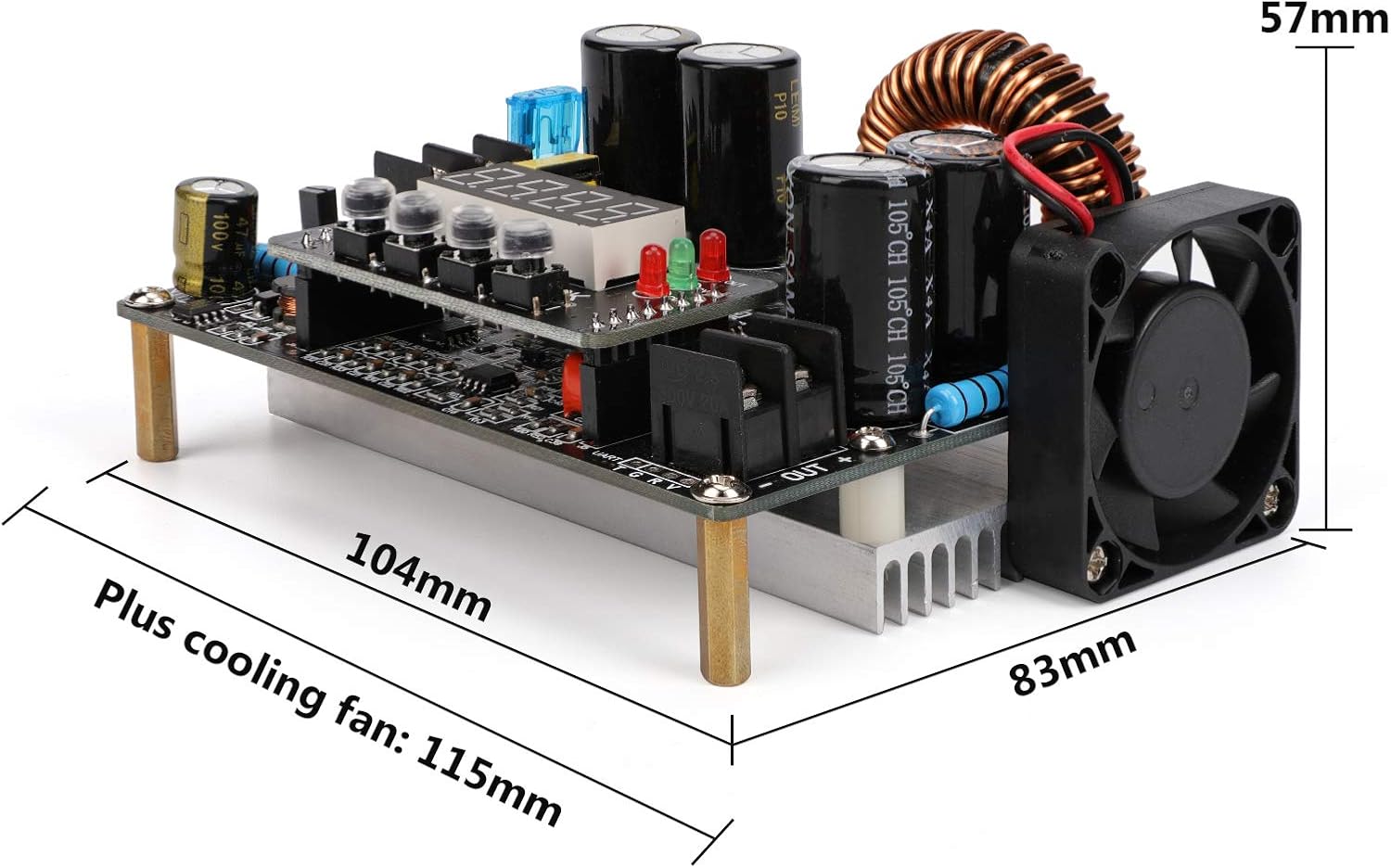

Image 3: Physical dimensions of the converter module.

5. Орнату

5.1 Сымды қосылымдар

1. Кіріс қуаты: Connect your DC power source (10V-65V) to the 'IN+' and 'IN-' terminals. Ensure correct polarity.
2. Шығыс жүктемесі: Connect your load device to the 'OUT+' and 'OUT-' terminals. Again, verify correct polarity.
3. Қауіпсіз қосылымдар: Ensure all wire connections are tight and secure to prevent loose contacts or short circuits.

5.2 Монтаждау

Mount the module in a stable location that allows for proper airflow, especially around the cooling fan and heat sink. Avoid enclosed spaces that could lead to heat buildup.

Image 4: Cooling fan and cooling pad for thermal management.

6. Пайдалану нұсқаулары

6.1 Қосу

Once wired correctly, apply power to the input terminals. The LED display will illuminate, showing the current output voltage or other default parameters.

6.2 Шығыс көлемін реттеуtage және Current

The module features operation key buttons for precise adjustment:

1. Тtage Параметр: Press the 'SET' button to enter voltage adjustment mode. Use the adjustment buttons (usually up/down arrows or rotary encoder, if present) to increase or decrease the voltage value. Press 'OK' to confirm and save the setting.
2. Ағымдағы параметр: Similarly, press 'SET' to cycle to current adjustment mode. Adjust the current value using the appropriate buttons and confirm with 'OK'.
3. Нақты уақыттағы дисплей: The LED display shows real-time output voltage and current. It can also display capacity and time, which can be cycled through using the buttons.

6.3 Күй индикаторлары

The module includes LED indicators to show its operating status:

• ШЫҒАНДА: Illuminates when the output is active.
• CV (тұрақты томtagд): Illuminates when the module is operating in constant voltage режимі.
• CC (Constant Current): Illuminates when the module is operating in constant current mode.

6.4 Қосымша мүмкіндіктер

• Automatic Output: The module can be configured to automatically enable output upon power input. Refer to the specific button sequence for this setting.
• Түймені құлыптау режимі: To prevent accidental changes to settings, the parameter adjustment buttons can be locked. Consult the device's specific button combination for this function.

7. Техникалық қызмет көрсету

Regular maintenance ensures optimal performance and longevity of your DROK DC Buck Converter:

• Тазалау: Keep the module clean and free from dust and debris. Use a soft, dry cloth for cleaning. Do not use liquid cleaners.
• Салқындату жүйесі: Periodically check that the cooling fan and heat sink fins are free from obstructions to ensure efficient heat dissipation.
• Қосылымдар: Regularly inspect all input and output wiring connections for tightness and signs of wear or corrosion.
• Сақтау орны: When not in use for extended periods, store the module in a dry, cool, and dust-free environment.

8. Ақаулықтарды жою

If you encounter issues with your DROK DC Buck Converter, refer to the following common problems and solutions:

9. Кепілдік және қолдау

DROK products are designed for reliability and performance. For technical assistance, warranty claims, or any questions regarding your DC Buck Converter, please contact DROK customer service through the retailer where you purchased the product or visit the official DROK webқолдау ақпаратына арналған сайт.
