SONGMICS Foldable Exercise Bike User Manual

1. Кіріспе

Thank you for choosing the SONGMICS Foldable Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read it thoroughly before use and retain it for future reference.

This exercise bike is designed for indoor cycling, offering a convenient way to burn calories and strengthen muscles from the comfort of your home. Its foldable design allows for easy storage, making it ideal for spaces where room is at a premium. The bike features 8 levels of magnetic resistance for varied workout intensity and a clear LCD display to track your progress.

Figure 1.1: The SONGMICS Foldable Exercise Bike in its upright, ready-to-use position. This image highlights the overall design, including the comfortable seat with backrest and the integrated display console.

2. Қауіпсіздік туралы ақпарат

WARNING: Before starting any exercise program, consult your physician, especially if you have pre-existing medical conditions.

• This product is intended for adult use only. Keep children and pets away from the equipment during operation.
• Patients with cardiovascular and cerebrovascular diseases should not use this product for exercise.
• Always perform stretching exercises before using the bike to prepare your muscles.
• Ensure the exercise bike is placed on a dry, flat, and stable surface. Do not use it on uneven or wet floors.
• Әрбір қолданар алдында барлық болттар мен гайкалардың мықтап бекітілгенін тексеріңіз.
• Қозғалатын бөліктерге ілініп қалуы мүмкін кең киімдерден аулақ болыңыз. Тиісті жаттығу киімдері мен аяқ киімдерін киіңіз.
• Ең үлкен пайдаланушы салмағы 100 кг (220 фунт) аспаңыз.
• Егер сіз ессіз, бас айналсаңыз немесе ауырсынуды сезінсеңіз, жаттығуды дереу тоқтатыңыз.
• Keep the product in an upright position for storage to prevent damage or injury.

3. Пакет мазмұны

Барлық құрамдас бөліктерді мұқият ашып, төменде көрсетілген барлық заттарды алғаныңызды тексеріңіз. Егер қандай да бір бөлшектер жоқ немесе зақымдалған болса, тұтынушыларды қолдау қызметіне хабарласыңыз.

• 1 x SONGMICS Foldable Exercise Bike (Main Frame)
• 1 x Assembly Tool Bag (includes necessary bolts, nuts, Allen wrench, and spanner)
• 2 x AAA Batteries (for display console)
• 1 x Instruction Manual (Multi-language)
• Additional components such as pedals, seat, backrest, handlebars, and display console (pre-attached or separate, depending on model variation).

4. Құрастыру нұсқаулары

Assembly typically takes about an hour. It is recommended to have a second person assist with some steps. Follow the detailed instructions provided in the included manual. The following is a general overview:

1. Бөлшектерді қаптамадан шығару және анықтау: Lay out all components on a clean, flat surface. Refer to the parts diagram in your specific manual to identify each piece.
2. Тұрақтандырғыш жолақтарын бекітіңіз: Берілген болттар мен гайкаларды пайдаланып, алдыңғы және артқы тұрақтандырғыш жолақтарын негізгі жақтауға бекітіңіз.
3. Педальдарды орнату: Attach the left and right pedals to their respective crank arms. Note that pedals are often marked 'L' and 'R' and may have different threading directions.
4. Орындық пен арқалықты жинаңыз: Attach the seat and backrest to their support posts. Then, insert the seat post into the main frame and secure it at the desired height.
5. Тұтқалар мен консольді бекіту: Connect the handlebars to the main frame. Route any necessary sensor wires and attach the display console to the handlebar assembly. Insert the AAA batteries into the console.
6. Қорытынды тексерулер: Ensure all connections are tight and the bike is stable. Test the folding mechanism.

Figure 4.1: The exercise bike's folding mechanism allows for compact storage. The image displays the bike in its upright, unfolded position and then transitioning to a folded, space-saving configuration, suitable for storage against a wall.

5. Пайдалану нұсқаулары

5.1 Велосипедті реттеу

• Орынның биіктігі: Adjust the seat height to ensure your leg is slightly bent at the knee when the pedal is at its lowest point. Loosen the adjustment knob on the seat post, slide the seat to the desired height, and re-tighten the knob securely. The adjustable seat height range is 73-86 cm.
• Қарсыласу деңгейі: The bike features 8 levels of magnetic resistance. Turn the tension control knob, typically located below the handlebars, clockwise to increase resistance (for a harder workout) and counter-clockwise to decrease resistance (for an easier workout).

Figure 5.1: The comfortable, padded seat and backrest provide support during your workout. The backrest is designed to alleviate strain on the back and spine.

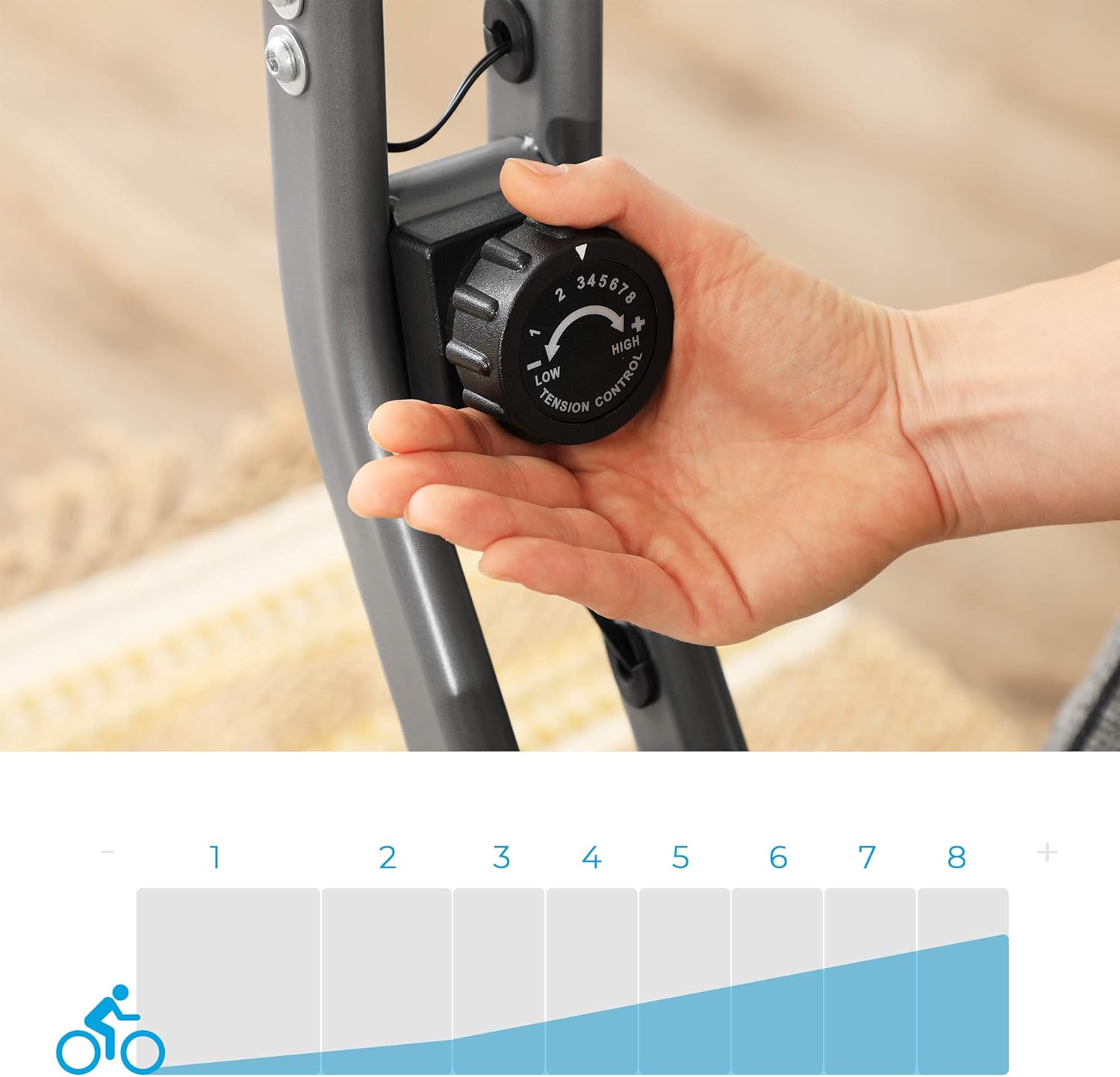

Figure 5.2: The tension control knob allows you to easily adjust between 8 levels of magnetic resistance, from low to high, to customize your workout intensity.

5.2 Using the LCD Display Console

The display console tracks your workout data. It is powered by 2 AAA batteries (included).

• Қуатты қосу/өшіру: The console automatically turns on when you start pedaling or press any button. It will turn off automatically after a period of inactivity.
• Функциялары: The display shows the following metrics:
  • ЖЫЛДАМДЫҚ: Сіздің қазіргі велосипед жылдамдығыңыз.
  • УАҚЫТ: Ағымдағы жаттығуыңыздың ұзақтығы.
  • Қашықтық: Ағымдағы жаттығу кезінде жүріп өткен қашықтық.
  • КАЛОРИЙ: Жойылған калориялар.
  • ПУЛС: Your heart rate, measured by the hand pulse sensors on the handlebars.
  • ОДОМЕТР: Жалпы жинақталған қашықтық.
• Режим түймесі: Press the "MODE" button to cycle through the different display functions or to set a specific function to be displayed continuously.
• Қалпына келтіру: To reset all values (except Odometer), press and hold the "MODE" button for a few seconds.

Figure 5.3: The LCD display console provides real-time feedback on your workout, including speed, time, distance, calories burned, and pulse. Hand pulse sensors are integrated into the handlebars for heart rate monitoring.

Figure 5.4: Key features include integrated pulse sensors on the handlebars, a convenient holder for your phone or tablet, the resistance adjustment knob, and the comfortable backrest.

6. Техникалық қызмет көрсету

Regular maintenance will ensure the longevity and optimal performance of your exercise bike.

• Тазалау: Велосипедті жарнамамен сүртіңізamp тер мен шаңды кетіру үшін әр қолданғаннан кейін шүберек. Абразивті тазартқыштарды немесе еріткіштерді қолданбаңыз.
• Тексеру: Periodically check all nuts, bolts, and moving parts for tightness and wear. Tighten any loose fasteners.
• Майлау: The internal magnetic resistance system is maintenance-free. However, if you notice any squeaking from joints or pivots, a small amount of silicone-based lubricant can be applied.
• Сақтау орны: When not in use, fold the bike and store it in an upright position in a dry, cool place, away from direct sunlight and extreme temperatures.

7. Ақаулықтарды жою

8. Техникалық сипаттамалар

Figure 8.1: Detailed dimensions of the exercise bike in both unfolded and folded configurations, illustrating its compact design for storage.

9. Кепілдік және қолдау

SONGMICS products are designed for quality and durability. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official SONGMICS website. If you encounter any issues or require assistance, please contact SONGMICS customer support. Have your model number (SEB012B01) and purchase details ready when contacting support.

Қосымша көмек алу үшін мына сілтемеге жүгінуге болады SONGMICS Brand Store on Amazon.
