WOLFCRAFT #3051

WOLFCRAFT #3051 Corner Clamp Нұсқаулық

Үлгі: №3051

1. Кіріспе

The WOLFCRAFT #3051 Corner Clamp is a versatile tool designed to assist in joining materials at a 90-degree angle. Its spring-loaded mechanism and sliding central pad allow for easy and secure clamping of various board thicknesses, making it ideal for woodworking projects such as constructing boxes, shelves, and frames.

This manual provides essential information for the safe and effective use of your corner clamp.

2. Қауіпсіздік туралы ақпарат

Always observe basic safety precautions when using any tools. Failure to do so may result in injury or damage to the workpiece.

  • Тиісті жеке қорғаныс құралдарын киіңіз: Көздеріңізді ұшатын қоқыстардан қорғау үшін әрқашан қауіпсіздік көзілдірігін киіңіз.
  • Ensure a stable work environment: Таза, жақсы жарықтандырылған және тұрақты жерде жұмыс істеңіз.
  • Secure your workpiece: Always ensure the materials being clamped are stable and will not shift during assembly or fastening.
  • Құралды тексеріңіз: Before each use, check the clamp Зақымдану немесе тозу белгілері үшін. Зақымдалған құралды пайдаланбаңыз.
  • Қолды таза ұстаңыз: Be mindful of the clamping mechanism to avoid pinching fingers.

3. Өнім аяқталдыview

The WOLFCRAFT #3051 Corner Clamp features a robust design for reliable 90-degree clamping. It consists of two main clamping jaws, a spring-loaded mechanism for quick adjustment, and a unique sliding central pad.

WOLFCRAFT #3051 Corner Clamp

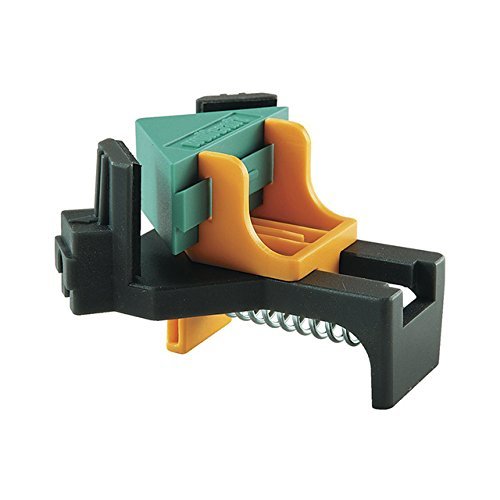

1-сурет: The WOLFCRAFT #3051 Corner Clamp. This image shows the overall design of the clamp, highlighting its jaws and spring mechanism, ready for use in woodworking projects.

4. Орнату

Setting up the WOLFCRAFT #3051 Corner Clamp is straightforward due to its spring-loaded design.

  1. Prepare your materials: Ensure the edges of the boards you intend to join are clean, straight, and cut to the correct dimensions for a 90-degree joint.
  2. cl орналастырыңызamp: Place the corner clamp over the corner where the two boards meet. The spring mechanism will automatically adjust to hold the boards.
  3. Adjust for thickness: The central pad of the clamp is designed to slide, allowing it to accommodate boards of different thicknesses (between 10mm and 22mm) while maintaining proper alignment. Ensure both boards are firmly seated against the clamp's jaws.
  4. Verify alignment: Double-check that the boards are perfectly aligned at a 90-degree angle before proceeding with fastening.

5. Пайдалану нұсқаулары

The #3051 Corner Clamp simplifies the process of assembling right-angle joints.

  1. Place boards: Bring the two boards you wish to join together at the desired 90-degree angle.
  2. Қолдану clamp: Position the WOLFCRAFT #3051 Corner Clamp over the corner. The spring-loaded jaws will automatically grip the boards.
  3. Secure the joint: Классamp holds the boards firmly in place, freeing your hands to apply adhesive, drill pilot holes, or insert fasteners (screws, nails, dowels).
  4. Бірнеше клamps for larger projects: For larger constructions like boxes or frames, it is recommended to use multiple clampс. Мысалыample, to construct a four-corner box, using clamps on both the top and bottom of each corner would require a total of eight clamps (four corners x two clamps per corner). Note: One set of WOLFCRAFT #3051 Corner Clamps typically contains two pieces.
  5. cl жоюamp: Once the adhesive has set or fasteners are secure, gently remove the clamp by pulling the jaws apart.

6. Техникалық қызмет көрсету

Proper maintenance ensures the longevity and optimal performance of your corner clamp.

  • Тазалау: Әрбір қолданғаннан кейін clamp with a dry cloth to remove any sawdust, glue residue, or other debris. For stubborn glue, a damp матаны қолдануға болады, содан кейін мұқият кептіру керек.
  • Майлау: Periodically apply a small amount of light machine oil to the sliding mechanisms and pivot points to ensure smooth operation.
  • Сақтау орны: Классты сақтаңызamp in a dry environment, away from excessive moisture, to prevent rust. Keep it in a designated place to protect it from damage.
  • Тексеру: Кл.-ны үнемі тексеріп тұрыңызamp for any signs of wear, damage, or deformation, especially on the clamping surfaces and spring mechanism. Replace the clamp if it shows significant damage that could affect its performance or safety.

7. Ақаулықтарды жою

If you encounter issues while using your WOLFCRAFT #3051 Corner Clamp, мыналарды қарастырыңыз:

  • Boards not holding securely:
    • Ensure the board thickness is within the 10mm-22mm range.
    • Check that the boards are fully seated against the clamp's jaws.
    • clamp for any damage to the spring or jaws that might reduce clampкүш.
  • Uneven joint:
    • Verify that the edges of your boards are cut precisely at 90 degrees.
    • Ensure the boards are flush against the clamp's reference surfaces.
    • Check for any debris between the clamp және дайындама.
  • Difficulty in placing or removing clamp:
    • Ensure the boards are not excessively thick or thin for the clamp's range.
    • Check for any obstructions or damage to the spring mechanism.

8. Техникалық сипаттамалар

  • Үлгі: №3051
  • Бренд: WOLFCRAFT
  • Compatible Board Thickness: 10 мм - 22 мм
  • Clampбұрышы: 90 градус
  • Quantity per Set: 2 pieces (as typically sold)
  • Негізгі қолдану: Woodworking, DIY projects (boxes, shelves, frames)

9. Кепілдік және қолдау

For warranty information, technical support, or replacement parts, please contact your retailer or the official WOLFCRAFT customer service. Keep your purchase receipt as proof of purchase.

For more information about WOLFCRAFT products, please visit the official WOLFCRAFT webсайт.
