Eaton 4PORT Netxtreme II 1000 Express Ethernet Adapter User Manual

1. Кіріспе

This manual provides detailed instructions for the installation, operation, and maintenance of the Eaton 4PORT Netxtreme II 1000 Express Ethernet Adapter. Please read this manual thoroughly before installing and using the product to ensure proper functionality and to prevent damage.

2. Өнім аяқталдыview

The Eaton 4PORT Netxtreme II 1000 Express Ethernet Adapter is a high-performance, quad-port, copper Gigabit Ethernet network adapter designed for server environments. It supports both Network Interface Card (NIC) and TCP Offload Engine (TOE) functionalities, as well as iSCSI over a single network connection. This adapter is ideal for implementing virtualization solutions, providing the necessary density and capacity for numerous virtualized systems on a single server.

Негізгі мүмкіндіктер мыналарды қамтиды:

• Quad-port copper Gigabit Ethernet connectivity.
• PCI Express 2.0 x4 interface for high bandwidth.
• Support for NIC/TOE and iSCSI.
• Optimized for virtualization environments.
• Network Technology: 10/100Base-TX.

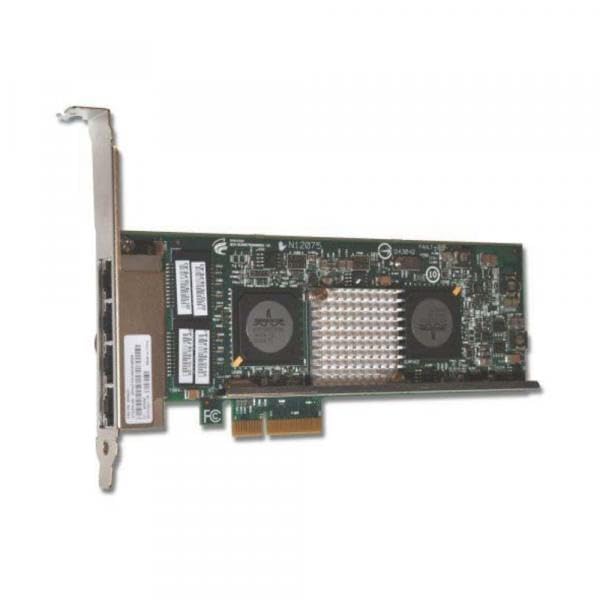

Figure 2.1: Eaton 4PORT Netxtreme II 1000 Express Ethernet Adapter. This image shows the network adapter with its four copper Gigabit Ethernet ports and PCI Express connector.

3. Орнату және орнату

Follow these steps to properly install the Eaton 4PORT Netxtreme II 1000 Express Ethernet Adapter into your server system.

3.1. Аппараттық құралдарды орнату

1. Қуатты өшіру жүйесі: Ensure your server is completely powered off and disconnected from the power source before opening the chassis.
2. Ашық шасси: Carefully open the server chassis to access the internal components.
3. PCI Express ұяшығын табыңыз: Identify an available PCI Express 2.0 x4 (or larger, e.g., x8, x16) slot on your server's motherboard.
4. Адаптерді кірістіру: Align the adapter with the chosen PCI Express slot and gently press it down until it is firmly seated. Ensure the bracket is secured to the chassis.
5. Шассиді жабу: Close the server chassis and reconnect the power source.

3.2. Драйверді орнату

After hardware installation, you may need to install or update drivers for the operating system to recognize and utilize the adapter fully.

1. Қуатты қосу жүйесі: Power on your server.
2. Құрылғы менеджерін тексеру: In your operating system, open Device Manager (or equivalent) to verify if the adapter is detected. It may appear under "Network Adapters" or "Other Devices" if drivers are not yet installed.
3. Obtain Drivers: Visit the official Eaton or IBM (manufacturer) support website and download the latest drivers for the Netxtreme II 1000 Express Quad Port Ethernet Adapter (Model 49Y4220) compatible with your operating system.
4. Драйверлерді орнату: Follow the instructions provided with the driver package to install the drivers. This typically involves running an executable file.
5. Орнатуды тексеру: After installation, check Device Manager again to ensure the adapter is recognized correctly and functioning without errors.

3.3. Network Cable Connection

Connect standard RJ-45 Ethernet cables to the four available ports on the adapter and to your network switch or router. Ensure secure connections for optimal performance.

4. Пайдалану нұсқаулары

Once installed and drivers are configured, the Eaton 4PORT Netxtreme II 1000 Express Ethernet Adapter operates as a standard network interface card, providing high-speed Gigabit Ethernet connectivity.

• Standard Network Operation: The adapter will provide network access at speeds up to 1000 Mbps (Gigabit Ethernet) through each of its four ports.
• Virtualization Support: For virtualization environments, configure the adapter within your hypervisor software (e.g., VMware, Hyper-V) to assign network resources to virtual machines. The quad-port design allows for dedicated network paths or link aggregation for increased bandwidth and redundancy.
• NIC/TOE and iSCSI: The adapter's support for NIC/TOE (TCP Offload Engine) and iSCSI can be configured through your operating system's network settings or specialized utility software provided by the driver package. Refer to your operating system's documentation or the driver's user guide for specific configuration steps for these advanced features.

5. Техникалық қызмет көрсету

The Eaton 4PORT Netxtreme II 1000 Express Ethernet Adapter is designed for reliable operation with minimal maintenance. However, adhering to general best practices for server hardware can prolong its lifespan and ensure optimal performance.

• Жүйені таза ұстаңыз: Periodically clean the interior of your server chassis to prevent dust buildup on the adapter and other components. Dust can impede airflow and lead to overheating. Use compressed air for cleaning.
• Тиісті желдетуді қамтамасыз етіңіз: Operate the server in an environment with adequate airflow and temperature control to prevent overheating of internal components, including the network adapter.
• Драйвер жаңартулары: Regularly check the Eaton or IBM support webжаңартылған драйверлерге арналған сайт. Драйверлерді ағымдағы күйде ұстау өнімділікті, тұрақтылықты және қауіпсіздікті жақсартады.
• Физикалық тексеру: During routine server maintenance, visually inspect the adapter for any signs of physical damage or loose connections.

6. Ақаулықтарды жою

This section provides solutions to common issues you might encounter with the Eaton 4PORT Netxtreme II 1000 Express Ethernet Adapter.

6.1. No Network Connectivity

• Кабельдерді тексеру: Ensure all Ethernet cables are securely connected to the adapter ports and the network switch/router.
• Байланыс шамдарын тексеру: Check the LED indicators on the adapter ports. A solid or blinking light usually indicates a successful link and activity. No lights may suggest a cable issue, port issue, or driver problem.
• Жүргізуші мәртебесі: Confirm that the drivers are correctly installed and the adapter is enabled in the operating system's Device Manager. Reinstall drivers if necessary.
• Желі конфигурациясы: Verify IP address, subnet mask, gateway, and DNS settings in your operating system's network configuration.

6.2. Желі жылдамдығының баяулығы

• Кабель сапасы: Гигабиттік жылдамдық үшін Cat5e немесе Cat6 Ethernet кабельдерін пайдаланып жатқаныңызға көз жеткізіңіз. Ескі Cat5 кабельдері жылдамдықты шектеуі мүмкін.
• Switch/Router Capability: Confirm that your network switch or router supports Gigabit Ethernet (1000 Mbps) on the connected ports.
• Драйвер параметрлері: Check the adapter's speed and duplex settings in the operating system's network adapter properties. Ensure it is set to "Auto Negotiation" or "1.0 Gbps Full Duplex".
• Жүйе жүктемесі: High CPU or disk usage on the server can impact network performance.

6.3. Adapter Not Detected

• Reseat Adapter: Power off the server, open the chassis, and reseat the adapter firmly in its PCI Express slot.
• Басқа ұяшықты қолданып көріңіз: If available, try installing the adapter in a different PCI Express slot to rule out a faulty slot.
• BIOS/UEFI параметрлері: Check your server's BIOS/UEFI settings to ensure PCI Express slots are enabled and configured correctly.

7. Техникалық сипаттамалар

8. Кепілдік және қолдау

Specific warranty information for the Eaton 4PORT Netxtreme II 1000 Express Ethernet Adapter (Model 49Y4220) is not provided in this document. For detailed warranty terms, conditions, and technical support, please refer to the official Eaton or IBM product support websites or contact their customer service directly.

Жаңартулар мен қолдау туралы хабарландырулар алу үшін, егер қажет болса, өнімді тіркеу ұсынылады.
