FSP ATX-300PA 300W ATX Power Supply User Manual

1. Кіріспе

This manual provides essential instructions for the safe and efficient use of your FSP ATX-300PA 300W ATX Power Supply. Please read this manual thoroughly before installation and operation to ensure proper functionality and to prevent damage to the unit or other components. Keep this manual for future reference.

2. Қауіпсіздік туралы ақпарат

Жарақат алу немесе зақымдануды болдырмау үшін келесі қауіпсіздік шараларын сақтаңыз:

• Always disconnect the power cord from the wall outlet before installing, removing, or servicing the power supply.
• Қуат көзін ашпаңыз casing. Жоғары томtage components are present inside, which can cause electric shock. There are no user-serviceable parts within.
• Ensure proper ventilation around the power supply to prevent overheating. Do not block any ventilation openings.
• Use the power supply only in dry environments. Avoid exposure to moisture, humidity, or liquids.
• This product is designed for internal computer use only. Do not use it for any other purpose.
• Ensure the power supply is compatible with your system's motherboard and components before installation.

3. Орнату және орнату

Follow these steps to install the FSP ATX-300PA power supply into your computer system:

1. Жүйені дайындаңыз: Компьютерді өшіріп, қуат сымын қабырға розеткасынан ажыратыңыз. Компьютердің корпусын ашыңыз.
2. Ескі қуат көзін алып тастаңыз (егер бар болса): Disconnect all power cables from the motherboard, graphics card, and other components. Unscrew and remove the old power supply from the case.
3. Жаңа қуат көзін орнату: Carefully place the FSP ATX-300PA into the power supply bay of your computer case. Ensure the fan is oriented correctly for optimal airflow (typically facing downwards or inwards, depending on case design). Secure the power supply with screws provided with your computer case.
4. Аналық платаның қуатын қосу: Connect the main 20+4 pin ATX power connector to the corresponding socket on your motherboard. Ensure it clicks into place.
5. CPU қуатын қосу: Connect the 4-pin (or 4+4 pin) CPU power connector to the CPU power socket on your motherboard.
6. Перифериялық қуатты қосу: Connect SATA power connectors to your hard drives, SSDs, and optical drives. Connect Molex connectors to any other peripherals that require them.
7. Графикалық карта қуатын қосыңыз (қажет болса): If your graphics card requires additional power, connect the appropriate PCIe power connectors from the power supply.
8. Кабельдерді басқару: Route cables neatly to improve airflow and aesthetics within the case.
9. Корпусты жауып, қуатты қосыңыз: Close your computer case. Connect the AC power cord to the power supply's input socket and then to a wall outlet or surge protector.

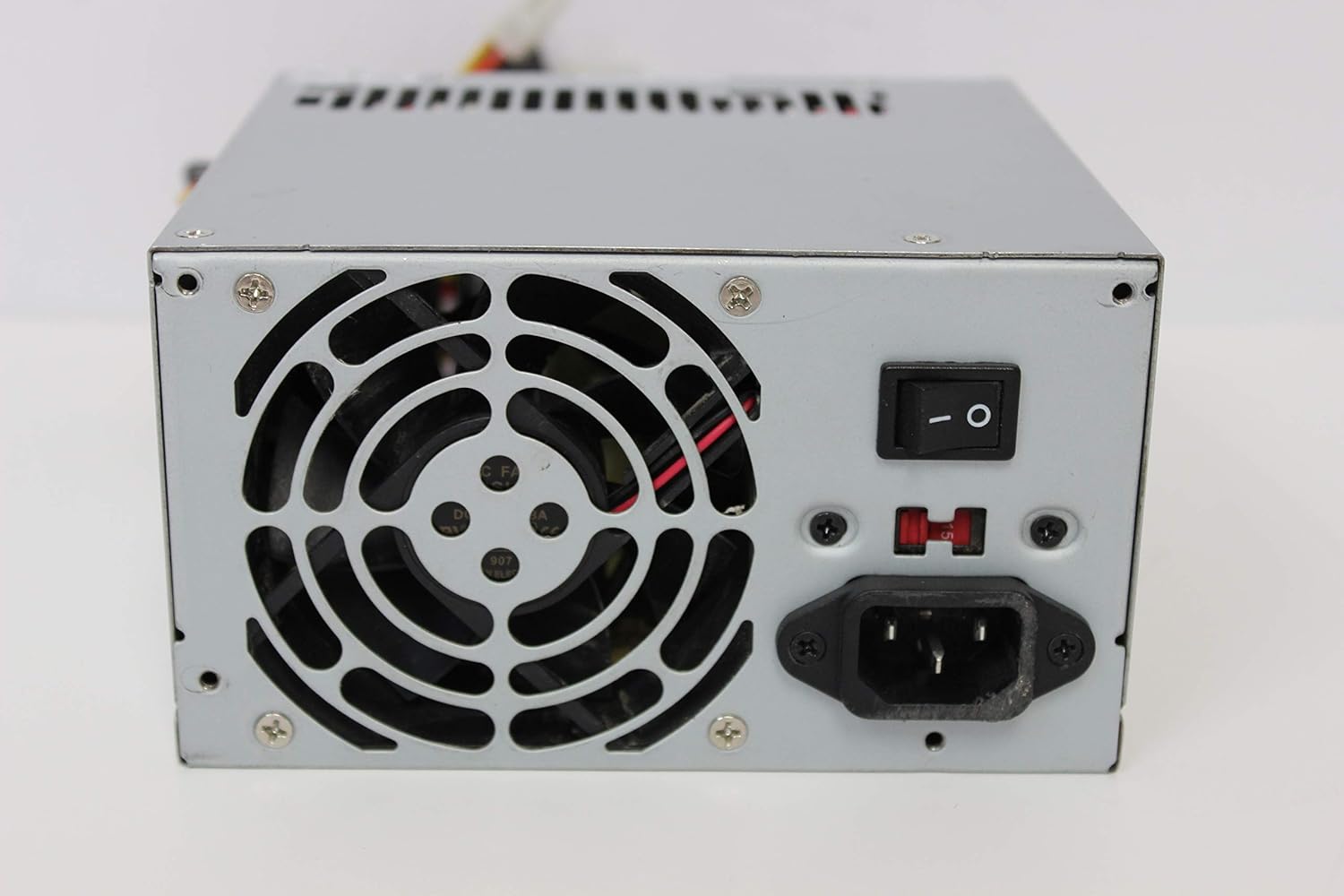

Сурет: артқы view of the FSP ATX-300PA power supply. This image displays the rear panel of the FSP ATX-300PA power supply. Visible components include the AC power input socket, the main power on/off switch, and the exhaust fan grille. A fuse holder is also present.

Image: Power connectors of the FSP ATX-300PA. This image shows a selection of power cables and connectors extending from the FSP ATX-300PA power supply. The prominent connector is the 20+4 pin ATX motherboard power connector, alongside several peripheral power connectors (e.g., Molex, SATA, 4-pin CPU).

4. Пайдалану нұсқаулары

Once the power supply is correctly installed and all connections are secure:

• Ensure the power switch on the rear of the power supply is in the "ON" (I) position.
• Press the power button on your computer case to start the system.
• The power supply will provide stable power to all connected components.

5. Техникалық қызмет көрсету

Тұрақты техникалық қызмет көрсету қуат көзінің ұзақ және оңтайлы өнімділігін қамтамасыз етуге көмектеседі:

• Шаңды тазалау: Periodically (e.g., every 6-12 months), disconnect the power supply from the wall outlet and open your computer case. Use compressed air to gently remove dust buildup from the power supply's fan and vents. Hold the fan blades to prevent them from spinning excessively during cleaning.
• Желдеткіш тексеру: Check the power supply fan for any obstructions or unusual noises. A clean, unobstructed fan is crucial for effective cooling.
• Кабельді тексеру: Ensure all power cables remain securely connected to their respective components.

Ескерту: Do not attempt to lubricate or disassemble the power supply fan. Do not open the power supply casing кез келген себеппен.

6. Ақаулықтарды жою

If you encounter issues with your FSP ATX-300PA power supply, consider the following troubleshooting steps:

• Жүйеге қуат берілмейді:
  • Ensure the AC power cord is securely connected to both the power supply and the wall outlet.
  • Verify that the power switch on the rear of the power supply is in the "ON" (I) position.
  • Қабырғадағы розетканың жұмыс істеп тұрғанын басқа құрылғыны қосу арқылы тексеріңіз.
  • Confirm all internal power connectors (20+4 pin ATX, CPU, peripherals) are firmly seated.
• Жүйенің тұрақсыздығы немесе кездейсоқ өшірулер:
  • Ensure the power supply is adequately ventilated and not overheating.
  • Verify that the total power draw of your components does not exceed the power supply's 300W capacity.
  • Check for loose connections to any components.
• Ерекше шулар:
  • If you hear grinding or rattling, it may indicate a fan issue. Disconnect power and inspect the fan for obstructions. Do not attempt to repair the fan yourself.

If issues persist after performing these checks, it may indicate a faulty power supply or another component. Consider professional diagnosis.

7. Техникалық сипаттамалар

8. Кепілдік және қолдау

For detailed warranty information, technical support, or service inquiries regarding your FSP ATX-300PA power supply, please refer to the official FSP Group INC. webсайтына немесе тұтынушыларға қолдау көрсетуге тікелей хабарласыңыз. Кепілдік шарттары мен шарттары аймаққа және сатып алу күніне байланысты өзгеруі мүмкін.
