Lutron MA-ALFQ35 Maestro Companion Fan and Light Control User Manual

1. Кіріспе

This manual provides detailed instructions for the installation, operation, and maintenance of the Lutron MA-ALFQ35 Maestro Companion Fan and Light Control. This device is designed to work in conjunction with a compatible Lutron Maestro Multi-Location Fan and Light Control (MA-LFQ3 or MA-LFQM) to provide multi-location control of your ceiling fan speed and light levels.

2. Қауіпсіздік туралы маңызды ақпарат

ЕСКЕРТУ: ток соғу қаупі.

• Бұл құрылғыны орнатпас немесе оған қызмет көрсетпес бұрын әрқашан автоматты ажыратқыштағы немесе сақтандырғыш қорабындағы қуатты өшіріңіз.
• Do not use this device with any fan or light control other than specified Lutron Maestro models.
• Installation must be performed by a qualified electrician or in accordance with all local and national electrical codes.
• Максималды ваттан асырмаңызtage ratings for connected loads.
• Бұл өнім тек үй ішінде пайдалануға арналған.

3. Өнім аяқталдыview

The Lutron MA-ALFQ35 is a companion control unit that extends the functionality of a primary Maestro Multi-Location Fan and Light Control. It allows you to adjust both the fan speed and light intensity from additional locations within a room or area. This unit does not function independently and must be paired with a compatible Maestro master control.

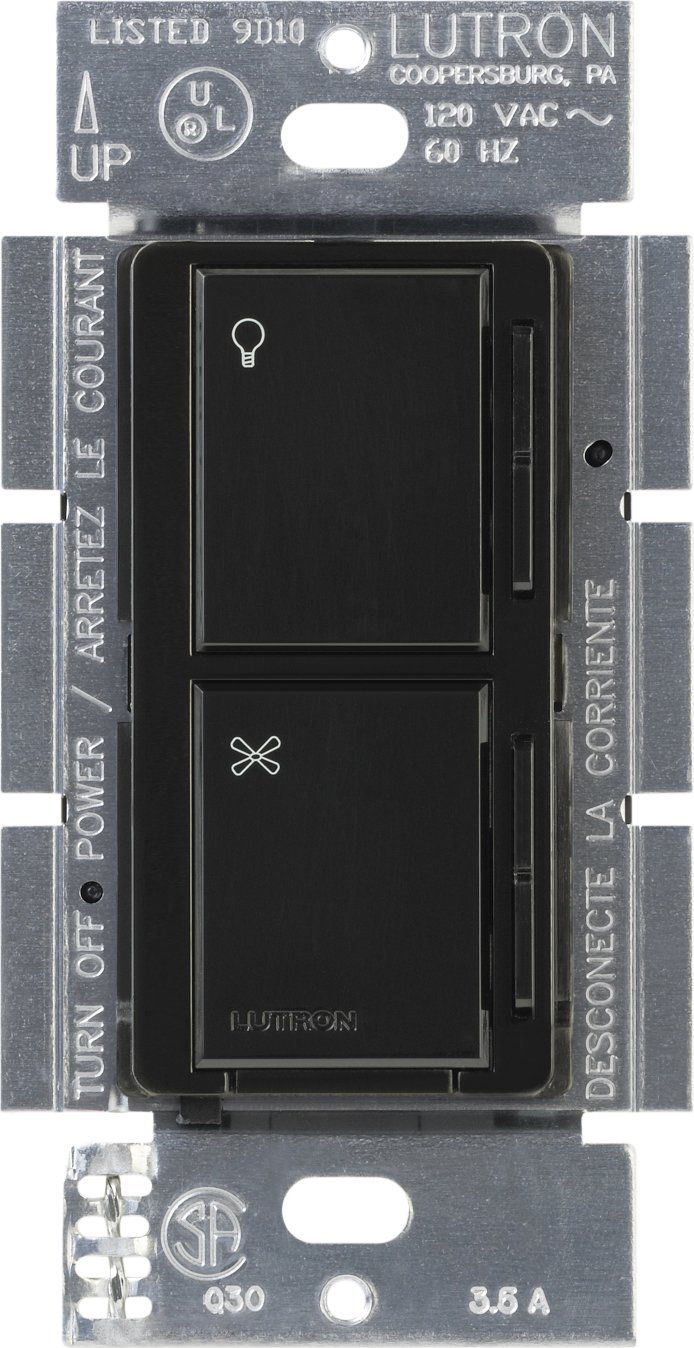

1-сурет: Алдыңғы view of the Lutron MA-ALFQ35 Maestro Companion Fan and Light Control. This black wall-mounted unit features separate touch controls for light (top) and fan (bottom), with a small Lutron logo at the base.

Негізгі мүмкіндіктер мыналарды қамтиды:

• Multi-location control for fan speed and light level.
• Adjusts fan speed and light level from up to three locations (when used with additional companion controls).
• Sets and recalls 7 distinct light levels and fan speeds.
• Touch control method for intuitive adjustments.

4. Үйлесімділік

This companion control unit is designed to operate exclusively with specific Lutron Maestro Multi-Location Fan and Light Controls. It is not a standalone device and will not function without a compatible master unit.

Compatible Master Control Models:

• Lutron MA-LFQ3
• Lutron MA-LFQM

Ensure you have one of these master units installed before attempting to install the MA-ALFQ35 companion control.

5. Орнату (Орнату)

Installation of the MA-ALFQ35 companion control requires basic electrical wiring knowledge. If you are unsure about any steps, consult a qualified electrician.

5.1 Бастамас бұрын

1. Қуатты өшіру: Locate the circuit breaker or fuse box that controls the power to the fan and light fixture. Turn off the power completely to prevent electric shock. Verify power is off using a voltagэлектронды тексеруші.
2. Сымдарды анықтау: Carefully remove the existing wall plate and switch. Identify the wiring in the wall box. This companion control typically requires a neutral wire, a hot wire, and a traveler wire connected to the master control. Refer to the wiring diagram provided with your шебері Maestro Multi-Location Fan and Light Control for specific connections.
3. Сымдарды дайындаңыз: Strip insulation from wires if necessary, ensuring approximately 1/2 inch (12 mm) of bare wire is exposed.

5.2 Wiring the Companion Control

The MA-ALFQ35 companion control connects to the master control unit via traveler wires. The exact wiring configuration will depend on your specific setup (e.g., 3-way or 4-way control). Always follow the wiring instructions provided with the шебері Lutron Maestro Multi-Location Fan and Light Control (MA-LFQ3 or MA-LFQM).

• Connect the appropriate wires from the wall box to the terminals on the MA-ALFQ35.
• Барлық сым қосылымдарының қауіпсіз екеніне көз жеткізіңіз.

5.3 Mounting and Finishing

1. Mount the Control: Carefully push the wired MA-ALFQ35 into the wall box. Secure it with the provided mounting screws.
2. Қабырға тақтасын орнату: Attach a coordinating Claro wallplate (sold separately) over the companion control.
3. Қуатты қалпына келтіру: Ажыратқышта немесе сақтандырғыш қорабында қуатты қайта қосыңыз.
4. Сынақ функционалдығы: Test both the fan and light controls from all locations to ensure proper operation.

6. Операция

The Lutron MA-ALFQ35 companion control provides intuitive touch-based operation for your ceiling fan and lights.

6.1 Жарықты басқару

• Қосу/өшіру: Tap the top section of the control (light icon) to turn the lights on or off.
• Жарықтықты реттеу: Press and hold the top section to dim or brighten the lights. Release when the desired brightness is reached. The control supports 7 distinct light levels.
• Алдын ала орнату: A quick tap will often recall the last set brightness level.

6.2 Желдеткіш жылдамдығын басқару

• Қосу/өшіру: Tap the bottom section of the control (fan icon) to turn the fan on or off.
• Жылдамдықты реттеу: Press and hold the bottom section to increase or decrease the fan speed. Release when the desired speed is reached. The control supports 7 distinct fan speeds.
• Алдын ала орнату: A quick tap will often recall the last set fan speed.

7. Техникалық қызмет көрсету

The Lutron MA-ALFQ35 requires minimal maintenance.

• Тазалау: To clean the surface of the control, wipe with a soft, damp шүберек. Абразивті тазартқыштарды, еріткіштерді немесе химиялық спрейлерді пайдаланбаңыз, себебі олар әрлеуді немесе ішкі компоненттерді зақымдауы мүмкін.
• Пайдаланушы қызмет көрсететін бөлшектер жоқ: There are no user-serviceable parts inside this unit. Do not attempt to open or repair the control.

8. Ақаулықтарды жою

If your Lutron MA-ALFQ35 companion control is not functioning as expected, consider the following:

• Қуат жоқ: Ensure the circuit breaker or fuse supplying power to the fan and light circuit is in the ON position.
• Not Responding: Verify that the master Maestro Multi-Location Fan and Light Control (MA-LFQ3 or MA-LFQM) is properly installed and functioning. The companion unit relies on the master unit for operation.
• Дұрыс емес сымдар: Double-check all wiring connections, especially the traveler wires between the companion and master units. Refer to the master unit's installation guide for correct wiring diagrams. Ensure all connections are secure.
• Incompatible Master Unit: Confirm that the master control unit is one of the specified compatible Lutron Maestro models (MA-LFQ3 or MA-LFQM). This companion control will not work with other types of fan or light controls.
• Бос қосылымдар: Turn off power at the breaker and re-check all wire connections in the wall box for tightness.

If problems persist after checking these points, contact Lutron customer support or a qualified electrician.

9. Техникалық сипаттамалар

10. Кепілдік және қолдау

10.1 Кепілдік туралы ақпарат

The Lutron MA-ALFQ35 Maestro Companion Fan and Light Control comes with a 1 жылдық шектеулі кепілдік on materials and manufacture. Please retain your proof of purchase for warranty claims. This warranty covers defects in materials and workmanship under normal use.

10.2 Тұтынушыларды қолдау қызметі

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Lutron customer support. Visit the official Lutron webбайланыс ақпараты мен қосымша ресурстарға арналған сайт.
